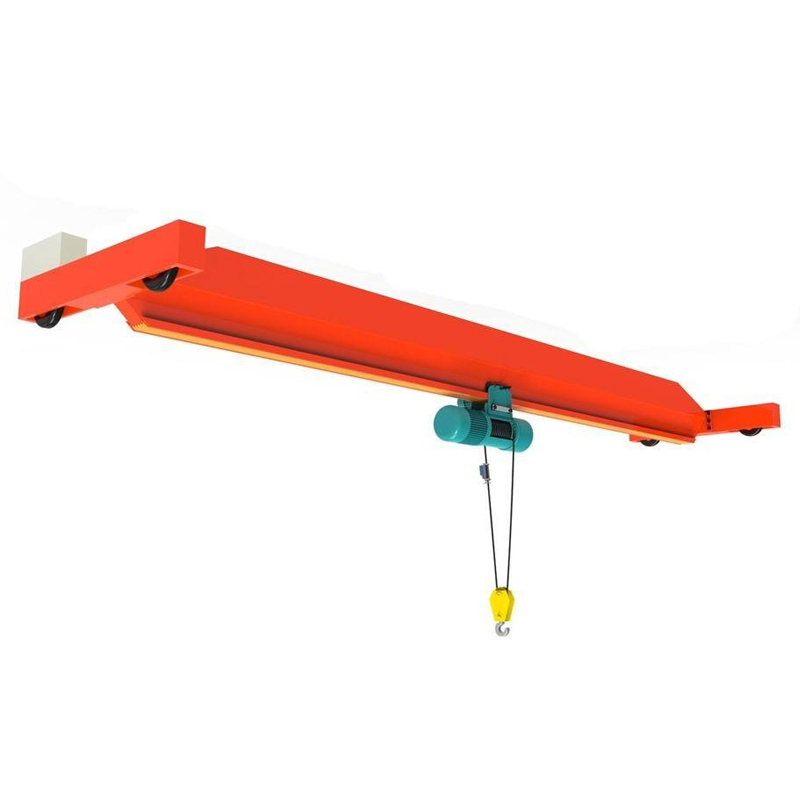

Single Girder Overhead Crane
Capacity: 0.5~32t
Lift Height: 3~120m or Customized
Span: 3~32m
Lifting Mechanism: Electric Wire Rope Hoist or Electric Chain Hoist
Protection class: IP44/IP54/IP55
Working temperature: -40~+60℃
Color：Customized
Description
Single girder overhead crane is equipped with a CD1 model or MD1 model electric wire rope hoist, the lifting mechanism can be single speed or double speed type, specially the speed can also be VVVF TYPE.
Single girder overhead crane have the advantages of compact appearance, light weight, low wheel pressure, stable running speed, low noise, and convenient installation and maintenance. It is suitable for use in warehouses, workshops, power stations and other places such as maintenance jobs and materials handlings.
Technical Data
| Capacity | 0.5~32t |
| Span | 3~32m |
| Lifting Height | 3~120m or customized |
| Lifting speed | Single speed: 3.5~8 m/min or customized Double speed: 3.5~8/0.35~0.8 m/min or customized |
| Lifting mechanism | Wire rope hoist or electric chain hoist |
| Work duty | A3~A5 |
| Power supply | 220/230/380/400/415/440V/460-AC-3Phase-50/60Hz or as require |
| Control method | Push button, wireless remote control, cabin control |
| Application area | Factory, workshop, warehouse, power station, logistic, steel mill etc. |
| Color | Customized |
| Working temperature | -40~40° or as require |
| Protection class | IP44; IP54; IP55; IP65 |
| Safety device | Buffer, current overload protection, overload device, power failure protection, lifting height limit device, gravity limit device |
Advantages
1. Single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole, which also called traditional overhead crane. If it’s installed in the warehouse, it’s also called the warehouse EOT crane.
2. Used together with CD1 model MD1 model electric hoist as a complete set, it is a light duty eot crane with a capacity 1 ton ~ 32 tons. The span is 1m~ 32m. Working grade is A3~A5.
3. Widely used in plants, warehouse, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
4. Single Girder Overhead Crane has two operational methods, ground or operational room which has open model closed model and can be installed on the left or right side according to the practical situation.
5. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users, choice under different conditions.
- Single welding box girder
- DIN/FEM standard deflection
- Whole length CNC cutting for complete web plate, high deflection accuracy
- High quality automatic welding and NDT inspection
- Shot-blasting Sa2.5 for complete girder after welding, stress release
- High tension bolts mounting between girder and legs, safety connection
- Excellent driving properties, long lifetime design.
- Excellent performance, stable operation, high efficiency, suitable for a variety of operating environments, effectively reduce labor costs
- Simple installation, convenient operation and maintenance, smooth operation, low noise
Application
Electric single girder overhead crane are widely used in petroleum and petrochemical, railway construction, civil aviation airports, hydroelectric power stations, ports, paper making, building materials, metallurgy and other workshops, warehouses, and material yards.
