Semi Gantry Crane
Single Girder Semi Gantry Crane, Double Girder Semi Gantry Crane
Capacity: 0.25-80 Ton
Lift Height: 12m
Span: 5-20m
Work Duty: FEM 1M(A4)-FEM 3M(A6)
Hoist Selection: Elecctric Rope Hoist/Electric Chain Hoist
Protection Class: IP54-IP65
Power Supply: 2PH/3PH 220V-480V 50Hz/60Hz/Customized
Working Temperature: -40~+40℃
Construction sites, factory, workshop, warehouse, power station, outdoor storage yards, logistic, etc.
Description

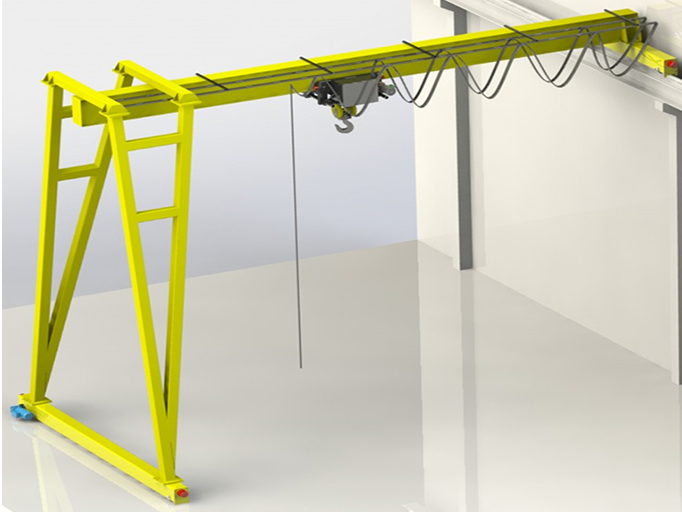

Semi Gantry Crane has a special design structure to suit various crane work situations. It can be single girder and double girder, the two ends connections are different, one side is connected and supported by the crane gantry leg travel on the ground mounted rails, another side is connected and supported by an end carriage travel on the overhead track.
Compare to the standard gantry crane, it will save one side support gantry leg, not only reduce the cost, but also can expand crane effective workspace in some limited workshops.
The crane is suitable for indoor and outdoor use, under the lifting hook, there are different lifting tools to choose, such as grab bucket, electromagnet and other lifting tools.
Technical Data
Features
- Reasonable structure
- Favorable performance
- Smooth starting and stopping
- Safe and reliable traveling
- Low noise, commodious cabin and good view
- Convenient maintenance ,excellent exchangeability for parts and computers
- Saves electricity specifications
- Crane traveling limit switch
- Weight overload protection system
- Emergency stop syestem
- Voltage lower protection function
- Current overload protection system
- Main lifting motor with thermal protection
- Hooks with latch
- Rubber buffers
- Sub-assemblies characteristic are tested before assembly
- All cranes must be preassembled and tested before leaving factory
Project Cases
Sinomac Industrial(SANOMAC) specialize in providing top-of-the-line semi gantry crane solutions tailored to various industrial sectors, including the manufacturing and metallurgy industries. Our commitment to excellence is evident in every aspect of our design, manufacturing, and quality assurance processes.
Sinomac Industrial(SANOMAC) is your trusted partner in elevating your industrial capabilities. Contact us today to discuss your requirements and embark on a journey toward a customized semi gantry crane system that perfectly suits your manufacturing or metallurgy facility.
Installation Service
Free Online Live Supervision of Installation
Sinomac Industrial(SANOMAC) Crane kit is extremely easy to assemble and has Quick Connect Plugs to the motors and control panel to eliminate the hard wiring of cranes. If for some reason you do have difficulties in assembling the crane kit, Kinocranes will be more than happy to assist over the telephone or via email.
