Mast Mobile Container Crane

Low Profile Type Cranes, Integrated Type Cranes, High Lift Type Cranes, Tilt Type Cranes

Suitable for 20ft, 30ft, 40ft, and 45ft open-top ultra-high containers.

Maximum Lifting Weight: 40t

Maximum Lifting Height: 1~10m or Customized

Power: Diesel Engine

Rotation Angle of Turning Whee: 110°

CE Certification: Include

Applications:
Logistics companies, Shipping docks, Container yards, and Freight terminals.

Description

Mast Mobile Container Crane – the ultimate lifting solution tailored for medium and small-sized container yards within the domestic market. Engineered for cost-efficiency, this specialized container crane, also known as a straddle carrier, is optimized to deliver the lowest operational costs in its class.

In order to meet the diverse needs of our clients’ operational sites, we offer a comprehensive range of Mast Mobile Container Cranes, each designed to address specific challenges and requirements in container handling. Our main types include:

  • Low Profile Cranes: These cranes are perfect for environments with height restrictions or indoor operations. Their reduced lifting height allows them to operate under bridges, inside warehouses, or in other areas where space is at a premium.
  • Integrated Cranes: Our integrated cranes boast a unified structure that enhances stability and efficiency. This design is ideal for tasks that require precision and where the crane’s integrity is paramount for safe and reliable operation.
  • High Lift Cranes: These cranes are designed to reach greater heights, making them suitable for sites that require high stacking capabilities. They enable operators to maximize vertical space, which is particularly beneficial in smaller or densely packed yards.
  • Tilt Cranes: With the ability to tilt their masts, these cranes offer an added dimension of flexibility. This feature is incredibly useful for handling uneven loads or when operating on slopes, ensuring the safety and stability of both the load and the crane.

Each type of our Mast Mobile Container Crane is engineered with the end-user in mind, combining robust construction, advanced technology, and user-friendly operation to provide a reliable and cost-effective solution for your container handling needs. Whether you are looking to optimize space, enhance operational efficiency, or require specialized handling capabilities, our range of cranes is here to elevate your productivity to new heights.



Technical Data

Specification Standard Mast Mobile Container Crane
Model Number KNJD300 KNJD360 KNJD400
Total Weight (T) 7 7.5 8
Rated Capacity (Kg) 30,000 36,000 40,000
Max. Steering Speed (without load) (Km/h) 3.5 3.5 3.5
Min. Passageway Width (mm) 3,200 3,200 3,200
Rated Torque of Hydraulic Motor (Nm) 1,010 1,010 1,010
Max. Lifting Speed (without load) (mm/s) 35 35 35
Max. Falling Speed (mm/s) 25 25 25
Max. Lifting Speed (with load) (mm/s) 25 25 25
Max. Falling Speed (with load) (mm/s) 30 30 30
Engine Power (Kw) 37 37 37
System Pressure (Mpa) 14 15 16
Rotation Angle of Turning Wheel (°) 110 110 110

Feature

  • Exceptional Maneuverability: Achieve maximum rotation of 110 degrees, allowing for precise steering and lateral movement at any angle.
  • Compact Turning Radius: Designed for ease of operation with a small turning radius, enhancing flexibility in tight spaces.
  • Hydraulic System Control: Both lifting and driving are controlled by a state-of-the-art hydraulic system, powered by hydraulic motors for smooth operation.


Advantage

  1. Power Efficiency: Powered by a multi-cylinder diesel engine, experience low operational noise and minimal vehicle vibration.
  2. Superior Lifting Capability: Utilizes a 180mm diameter hydraulic cylinder for lifting, enabling significant load capacity with lower system pressure.This results in a stable, safe, and efficient lifting and lowering process.
  3. High Efficiency: Streamline loading and unloading processes with high operational efficiency.

Case Showcasing

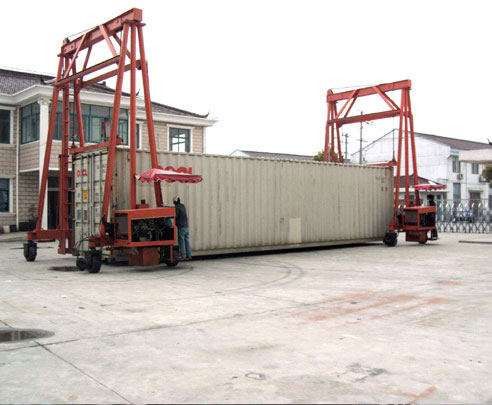

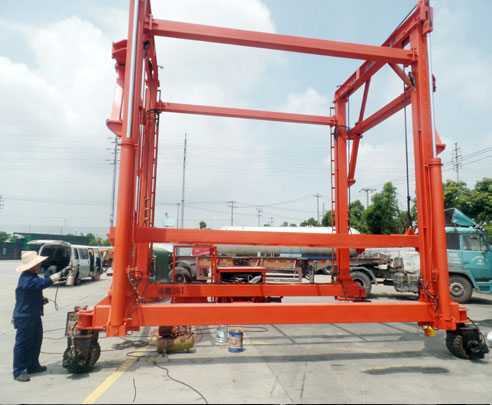

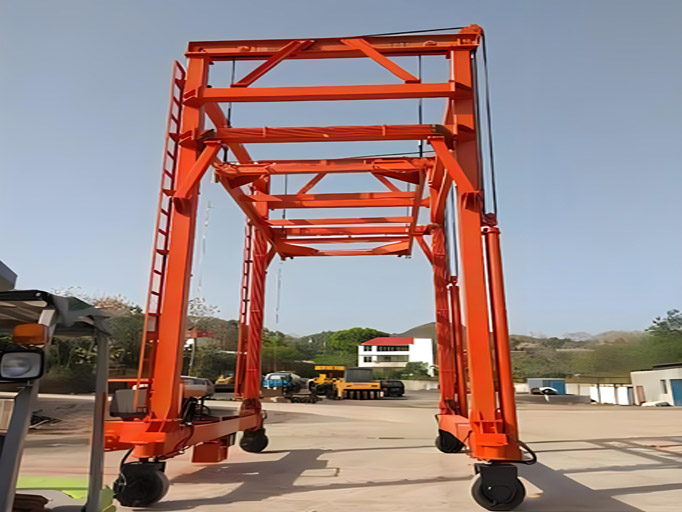

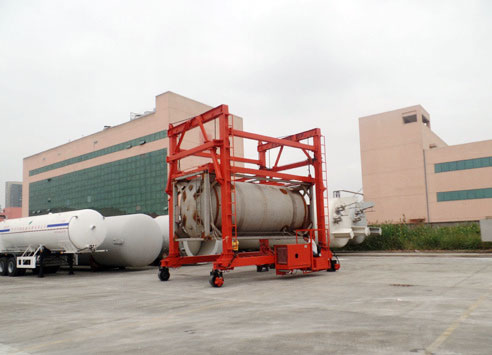

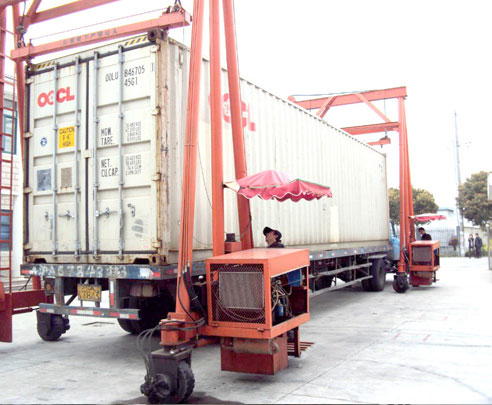

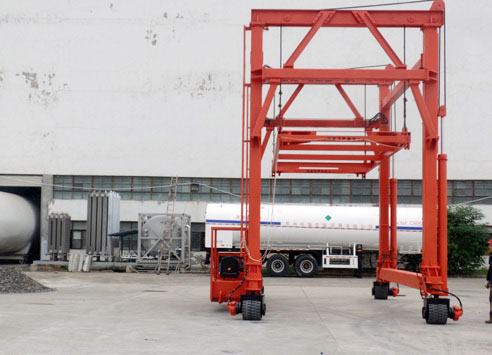

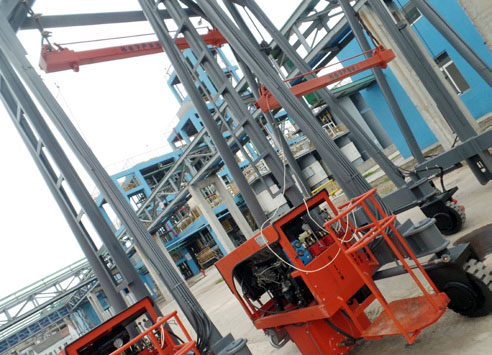

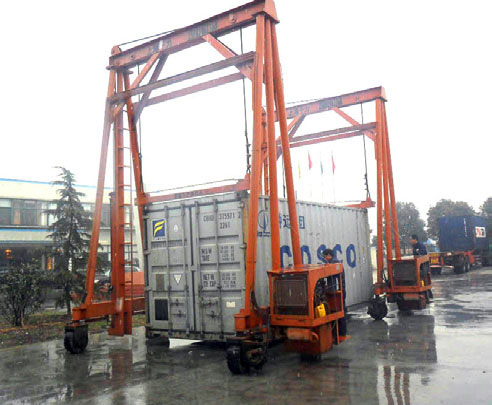

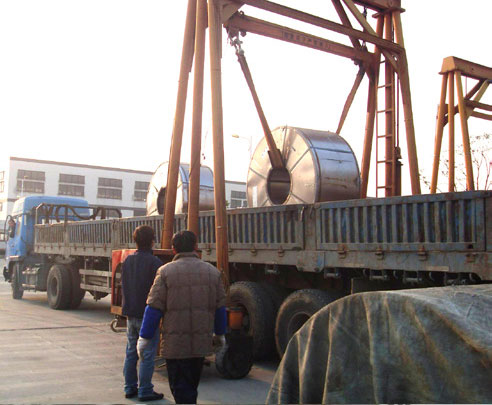

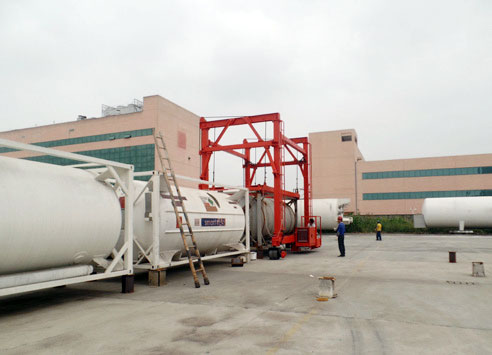

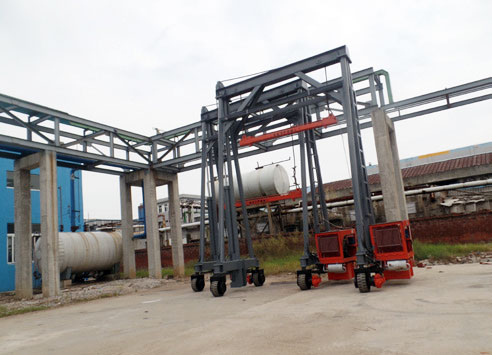

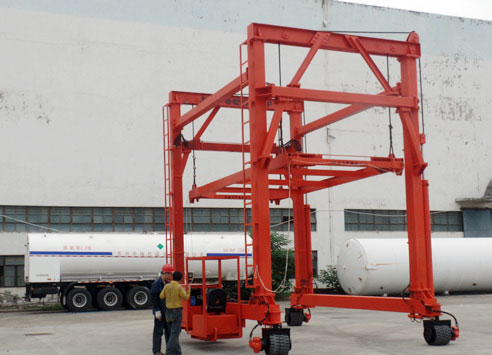

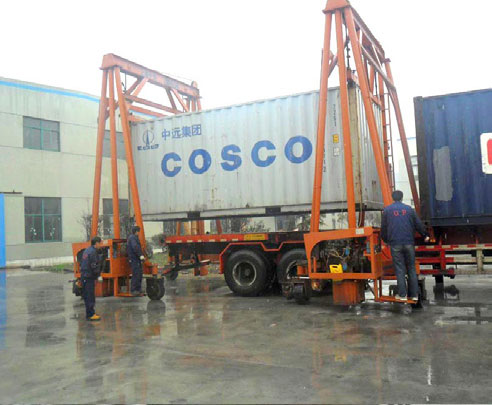

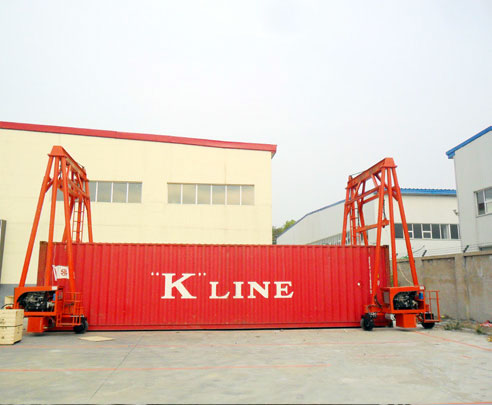

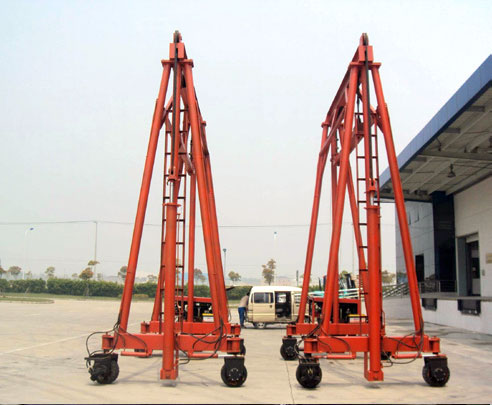

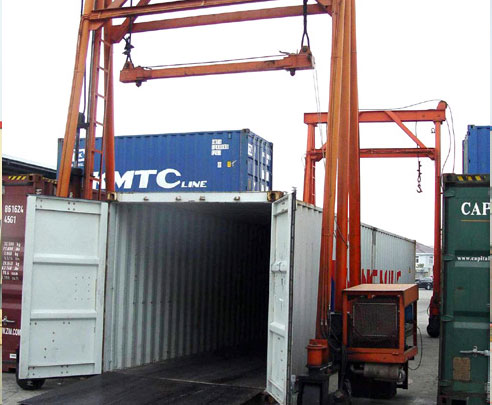

Discover the strength and innovation of our Mast Mobile Container Cranes through our project showcase. Each image is a testament to our company’s commitment to delivering robust and efficient container handling solutions across the globe.

Elevate your container handling operations with the Mast Mobile Container Crane. Perfect for logistics companies, warehouses, docks, container stacks, and freight yards – this crane is the epitome of quality at an affordable price. Don’t let inefficiency hold you back. Contact us today to learn more about how our container crane can revolutionize your operations!
