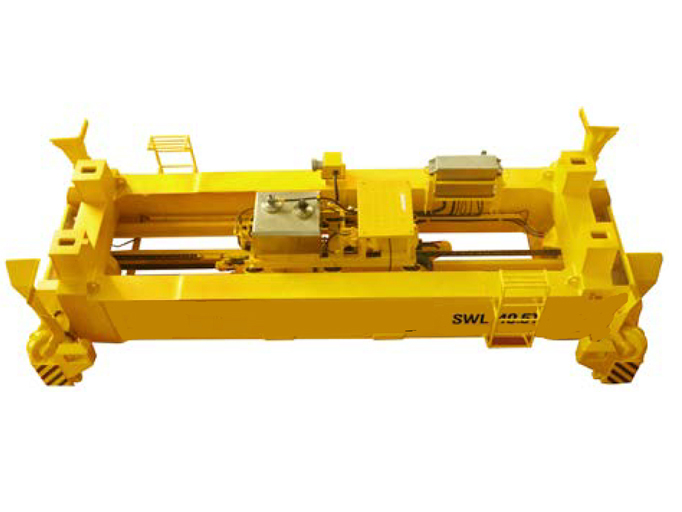

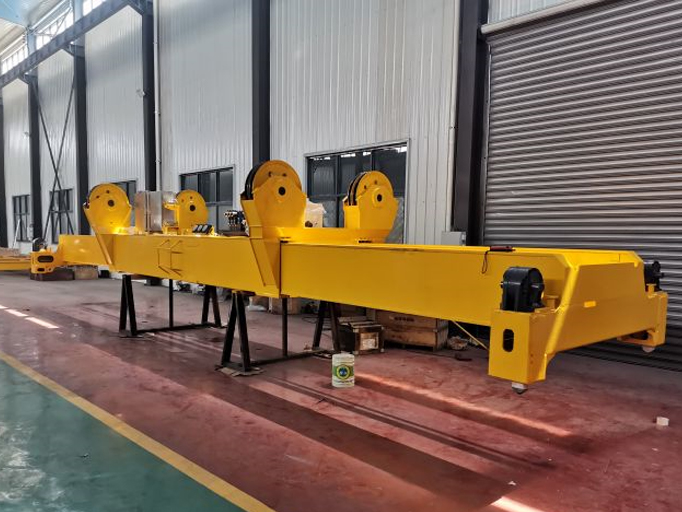

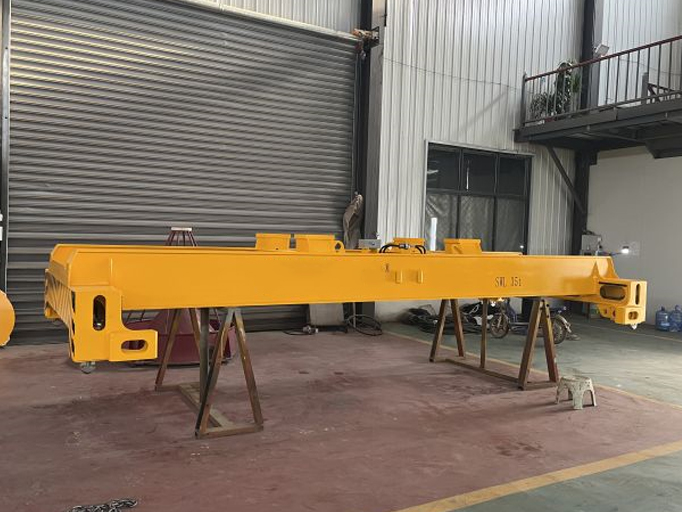

Hydraulic Container Spreader
APPLICATION: RMG Cranes, RTG Cranes, Marine Cranes
ISO CONTAINER SIZES: 20ft, 40ft, 45ft
TELESCOPIC SWITCHING: Between 20-foot and 40-foot Positions
Single-lift Spreader Option: Fixed Flipper, Movable Flipper, List Function&Movable Flipper, Equipped Sheave Assembly and Cable Basket
Twin-lift Spreader Option: Fixed Spreader with Movable Flipper, Separated Spreader with Fixed Flipper, Separated Spreader with Movable Flipper
CE CERTIFICATION: Include
Description
Hydraulic container spreaders, driven by hydraulic systems, facilitate efficient container handling for various lifting machines such as shore cranes, tire cranes, rail cranes, and gantry cranes. Sinomac(SANOMAC) spreaders, incorporating imported hydraulic and electrical components, ensure responsive and reliable performance.
Categorized Specifications:
- Fixed Spreaders:
- 20ft Fixed Spreader
- 40ft Fixed Spreader
- Telescopic Spreaders:
- 20ft/40ft Telescopic Spreader
- 20ft/40ft/45ft Telescopic Spreader
- 2-20ft Telescopic Twin Spreader
- Spreader Types:
- Hydraulic Single-lift Container Spreader
- Hydraulic Twin-lift Container Spreader
Technical Data
The following table provides technical specifications for the Hydraulic Dual-Container Detachable Spreader. This hydraulic spreader allows the simultaneous lifting of two standard 20-foot containers. The spreader’s rotation mechanism is driven by eight single-acting hydraulic cylinders installed at the corners and center. Four sets of movable guide devices are positioned at the corners to assist the driver in precisely aligning the containers. An infrared photocell sensor is installed on the spreader for electrical interlocking protection.
For further details on hydraulic spreader parameters, please refer to the attached PDF, available for download.
| Model | HMT2-20ft\45ft_HF4 |
| Self Weight | 13.5 ton |
| Applicable Machines | Tire crane, Rail crane, Bridge crane |
| Pivot Type | ISO floating pivot, Hydraulic cylinder drive |
| Telescopic Type | Oil motor drive, Telescopic through chain drive |
| Intermediate Suspension Lifting | Hydraulic cylinder vertical movement for lifting |
| Twin-lift Movement | Hydraulic cylinder horizontal movement for translation |
| Guide Plate Mechanism | Swing cylinder active guide plate |
| Power Supply Voltage/Frequency | AC380(3P)/50Hz |
| Total Power | 7.5KW |
| Allowable Load Eccentricity | 土10% |
| Rated Load | Single-lift 50 tons, Twin-lift 65 tons |
| Hanger Rated Load | 4×12.5 tons |
| Ambient Temperature | -20°~+60° |
| Opening/Closing Time | ~1s |
| Telescoping Time (20ft~45ft) | ~35s |
| Single Stroke Time | ~10s |
| 0-1.6m Single Stroke Time | ~25s |
| Guide Plate 180° | 5~7s |
| Control Voltage | AC220V(Optional) |
| System Operating Pressure | 100/170bar |
| Protection Level | IP55 |
Feature
- Material Quality: Utilizes high-strength steel plates, providing a lightweight structure with excellent strength.
- Structural Design: Rational design of the lifting equipment’s structure ensures durability and longevity of components.
- Assembly Efficiency: Standardized assembly and strong part interchangeability contribute to efficient and versatile use.
- Rotation Mechanism: Employs eight single-acting hydraulic cylinders for a stable and reliable lifting operation.
- Alignment Assistance: Equipped with four movable guide devices at the corners, facilitating precise alignment of containers.
- Safety Measures: Incorporates an infrared photocell sensor for electrical interlocking protection, ensuring safe and secure operations.
Project Case
Sinomac Industrial(SANOMAC) is dedicated to delivering comprehensive services, encompassing research, design, manufacturing, installation, debugging, transportation, and after-sales support. We specialize in the field of container spreaders and hoisting equipment. Operating globally, we export to major ports worldwide. If you have any inquiries or requirements, please feel free to contact us.
