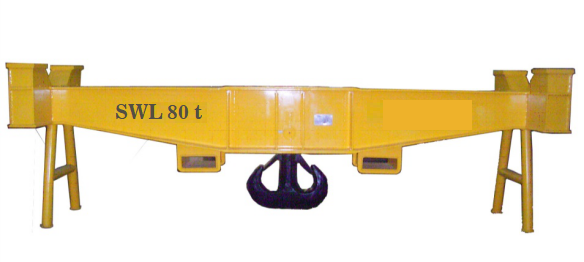

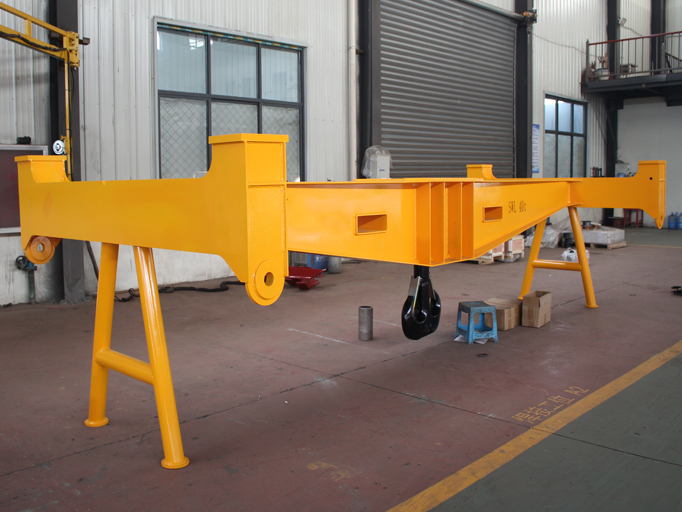

Hook Beam

Model: MHB80

Rated Load Capacity: 50-80 tons

Self-Weight: 2.7 tons

Applicable Equipment: RTG cranes, RMG cranes

Application: Connect with the Sling/Spreader or Upper Rack through the rotating pin hole or latch to bulk cargo Lifting Works

Hook Type: Manually selectable rings for versatile lifting options

Applications:
Ideal for ports, construction sites, and industrial environments,

Description

Hook Beam offers a robust solution for operation with bulk cargo. Designed to accommodate a wide range of lifting scenarios, this cargo beam is suitable for use with various cranes including RTG and RMG cranes.

Substantial load capacity of 50-80 tons combined with a manageable self-weight of 2.7 tons makes it an asset for any heavy-duty operation. The MHB80 Hook Beam ensures a secure connection to the Sling/ Spreader or upper rack connected to RTG or RMG through either clevis or pin joints, providing flexibility and safety in all lifting tasks.

The hook beam adopted the FEM/DIN design to allows for manual selection of rings, adapting to different cargo types and sizes, streamlining your operations.

Technical Data

Model MHB80
Pre-treatment of steel Blasting, protective painting
Application For Bulk Cargo Lifting
Rated Lifting Load 50~80T
Self-weight 2.7t
Painting of structures Two coats of Epoxy zinc-rich primer, one coat of middle paint, two coats of chlorinated rubber facings, Minimum film thickness: 220 microns

Feature

  • Quick Connection
  • Anti-Detach Safety
  • Reliable Performance
  • Enhanced Durability
  • Simplified Operation
  • Maintenance-Free Design
  • Heavy Load Capacity
