Grab Overhead Crane
Max.Lifting Height : 18-26m
Lifting Capacity: 5-20t
Span: 10.5-31.5m
Work Duty: M5-M8
Rail Recommended: 43kg/m, QU80
Work Voltage: 3PH 220V-480v 50Hz/60Hz or Customized
Description
Grab overhead crane is equipped with grab bucket and hoisting machinery, specialized in handling all kinds of powder and granular bulk materials. It comes in two basic configurations, single girder grab overhead crane and double girder grab overhead crane. The crane helps increase your factory production and ensure a safe operation. Besides, the equipment can be customized to fit your specific work sites and work requirements. We can also supply dust cover, cutting edge sealing parts according to the environmental requirement, marine environmental and other special working condition.
The main structure of the overhead crane consists of bridge, travelling mechanism, hoist and trolley, grab and electrical equipment. With rich experience in the crane industry, we can provide you with the ideal overhead crane system for your application.
Technical Data
Liting Capacity | t | 5-32 | ||
Max.Lifting Height | m | 18-26 | ||
Span | m | 10.5-31.5 | ||
Work Duty | FEM | M5-M8 | ||
Speed | Trolley | Hoisting |
m/min |
40.1-48.6 |
Travelling | 43.2-45.6 | |||
Bridge Travelling | 87.3-114.4 | |||
Weight |
Trolley | T | 5.2/5.9-19.3/20.4 | |
Total | Indoor | T | 19.9-75.6 | |
Outdoor | 20.7-76.8 | |||
Grab | Volume | m 3 | 0.75-10 | |
Dead weight | kg | 2546-10123 | ||
Rail Recommended | 43kg/m, QU70 | |||
Work Voltage | 380v 50hz 3phase or customized |
Features
- Reasonable structure, strong bearing capacity
- Low noise, soft starting and stopping
- Safe and reliable operation
- Commodious cabin and open view
- Low cost maintenance, long working life
- Strong box type,welding by machine hand
- Wheels are vacuum casting,medium frequency quenching
- Wheels,wire rope drum,gears, couplings are processed by CNC machine center, TOP quality control.
- Heavy duty motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running.
- Siemens or Schneider electric components are used for durable and safe operation
Advantages
- Our workshop grab overhead crane has reasonable design, compact structure and nice appearance;
- The grab crane is excellent usability with long service life, and it functions well and reliably;
- The operating of the crane is flexible, safe and reliable;
- Sinomac Industrial(SANOMAC) supplies various grab overhead cranes to meet clients’ different requirements and work conditions;
- The grab crane applies shot blasting and high quality painting, and it adopts well-chosen steel plate, advanced welding technology and equipment to ensure the crane quality and performance;
- Our grab cranes are equipped with reliable safety protections, like crane traveling limit switch, overload protection device, emergency stop device, lifting height limit device and so on;
- Our grab overhead crane price is very reasonable and competitive;
- We provide one year warranty for whole machine and also provide free spare parts. When the warranty is expired, the charge for the maintenance is very low. We can also provide free training as clients need.
Application
Grab crane is widely used in power station, storage, smelting workshop of steel mill, port, cement plant, and waste recycling station, etc. to load and unload scattered objects. The grab crane has a high requirements on heat, dust, and aggressive environment. Sinomac Industrial(SANOMAC) can provide you the optimal grab crane to your applications.

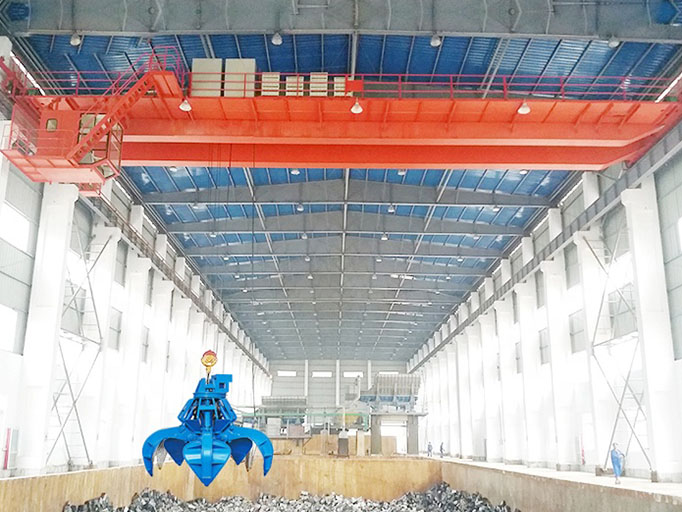

There are two types of grab buckets, the orange peel grab and clamshell grab. The orange peel grab is suitable for handling materials, such as, steel scrap, big iron stock, garbage, and steel mills whereas the clamshell grab is used to lift small bulk materials, such as, grain, bulk fertilizer, etc.
