Empty Container Stacker Spreader
APPLICATION: Empty Container Handler, Reach Stacker
ISO CONTAINER SIZES: 1 X 20FT Empty Container, 1 X 40FT Empty Container
Rated Load: ≤8 tons
Self-weight: 3.5 tons
Side Shift: ± 600 mm
CE CERTIFICATION: Include
Designed to efficiently handle single 20′ and 40′ empty containers, the HLS40ft is ideal for masted lift trucks.
Description

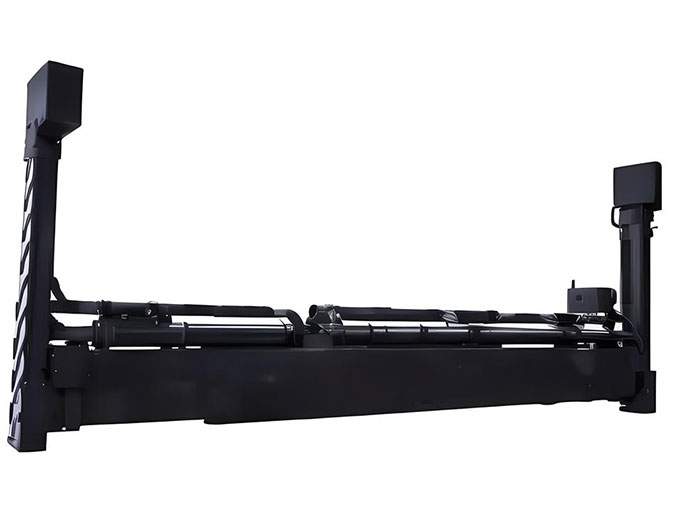

The HLS40ft is a versatile side-lift stacker spreader designed for efficiently handling single 20′ and 40′ empty containers with masted lift trucks. Featuring a single-beam structure, this spreader boasts simplicity, easy maintenance, and lightweight design. Mechanical and electrical interlocks secure the swivel pin, providing a 250mm flexible floating function for easy container alignment. With lower vertical and shorter horizontal dimensions than the container length, this stacker spreader facilitates convenient container handling.
Technical Data
| Model | HLS40ft |
| Rated load | ≤8tons |
| Self weight | 3.5 tons |
| Transfer pin type | ISO floating transfer pin, hydraulic cylinder drive |
| Telescopic form | hydraulic cylinder telescopic drive |
| Side shift mechanism | hydraulic cylinder telescopic drive |
| Power supply voltage/frequency | AC 380(3P)/50Hz |
| Allowable eccentric load | ±10% |
| Vertical floating stroke of resale box | 200mm |
| Opening and closing time | ~1s |
| Telescopic time (20ft~40ft) | ~25s |
| Side shift ±600 | ~15s |
| Control voltage | AC 220V (optional) |
| Protection level | IP55 |
| Ambient temperature | -20°～+60° |
Feature
- Full block stacking with enhanced visibility
- Quick handling of 20′ to 40′ containers with dampening for maximum speed
- Equipped with ISO twistlocks for secure container attachment
- ± 600 mm side shift with smooth control technology
- 250mm flexible floating function for easy container alignment
- ±2° self-leveling capability for improved stability
- Long service intervals contributing to an extended economic life
