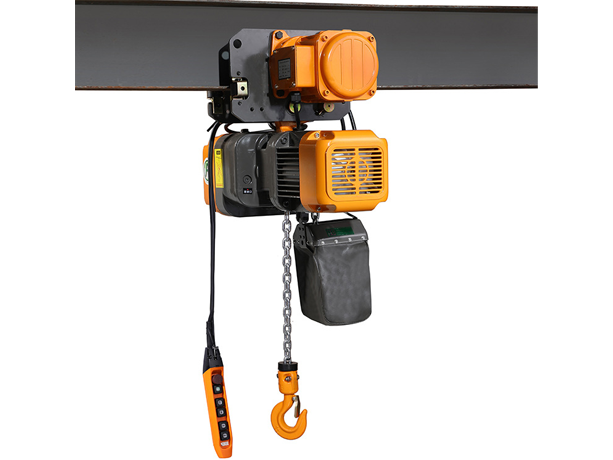

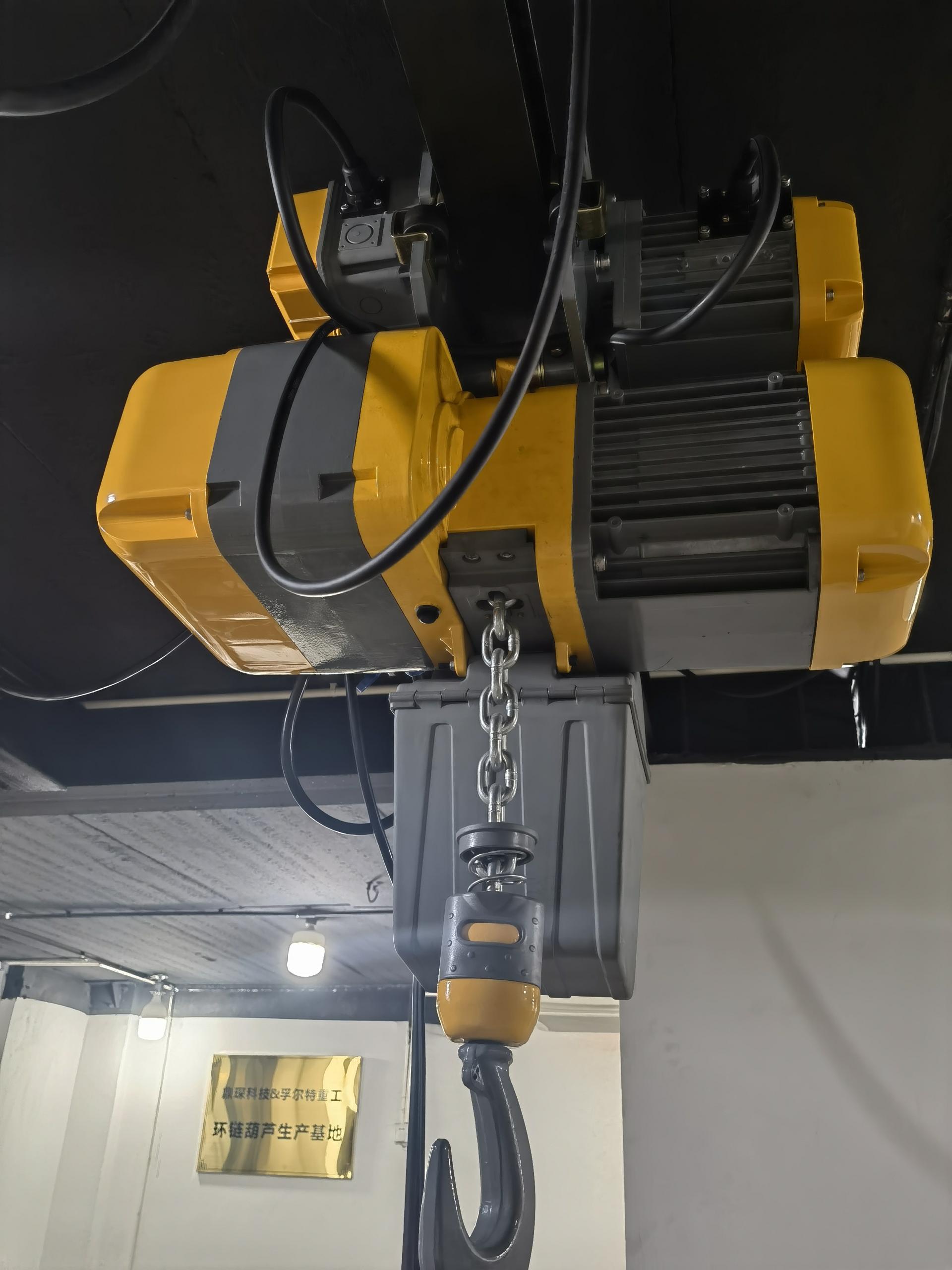

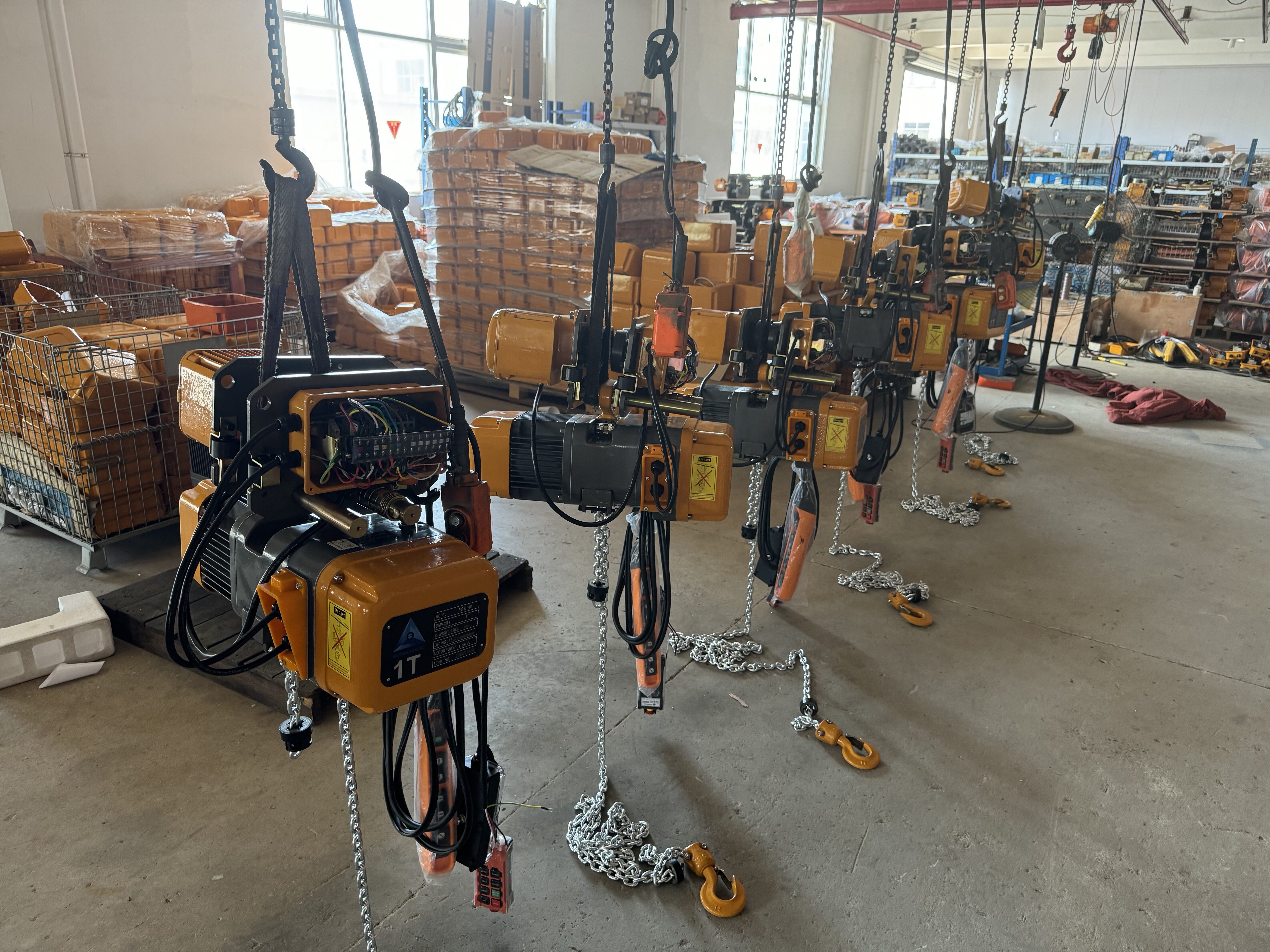

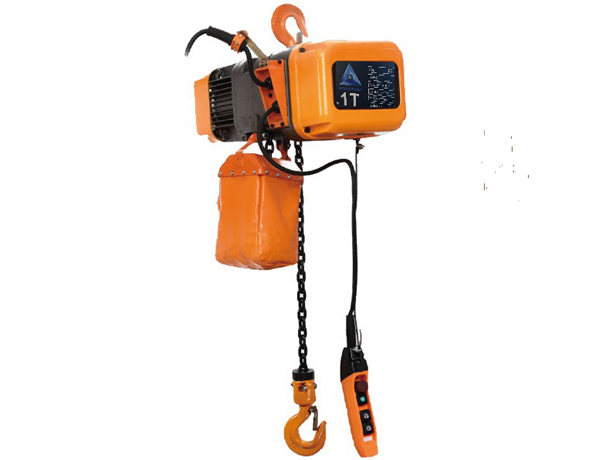

ELECTRIC CHAIN HOIST
New Type Electric Chain Hoist is adopted the DIN standard, which is more competitive than rope hoist. The Electric Chain Hoist can be together with overhead crane, gantry crane, jib crane for efficient material handling.
MAX CAPACITY: 100T
LIFTING HEIGHT: 0-120m
LIFTING SPEED: 0–30 m/min or Customized
APPLICABLE STANDARD: FEM/DIN/ISO

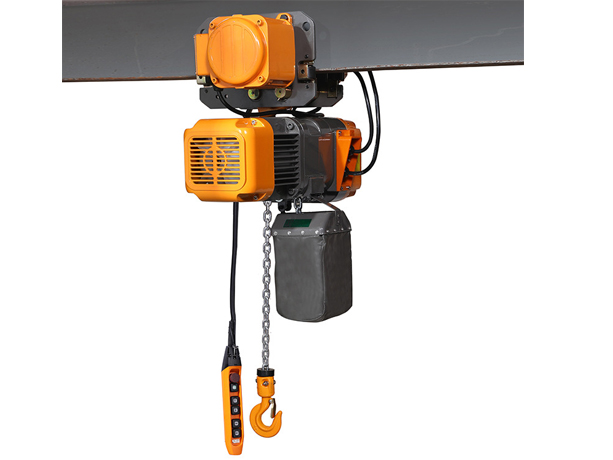

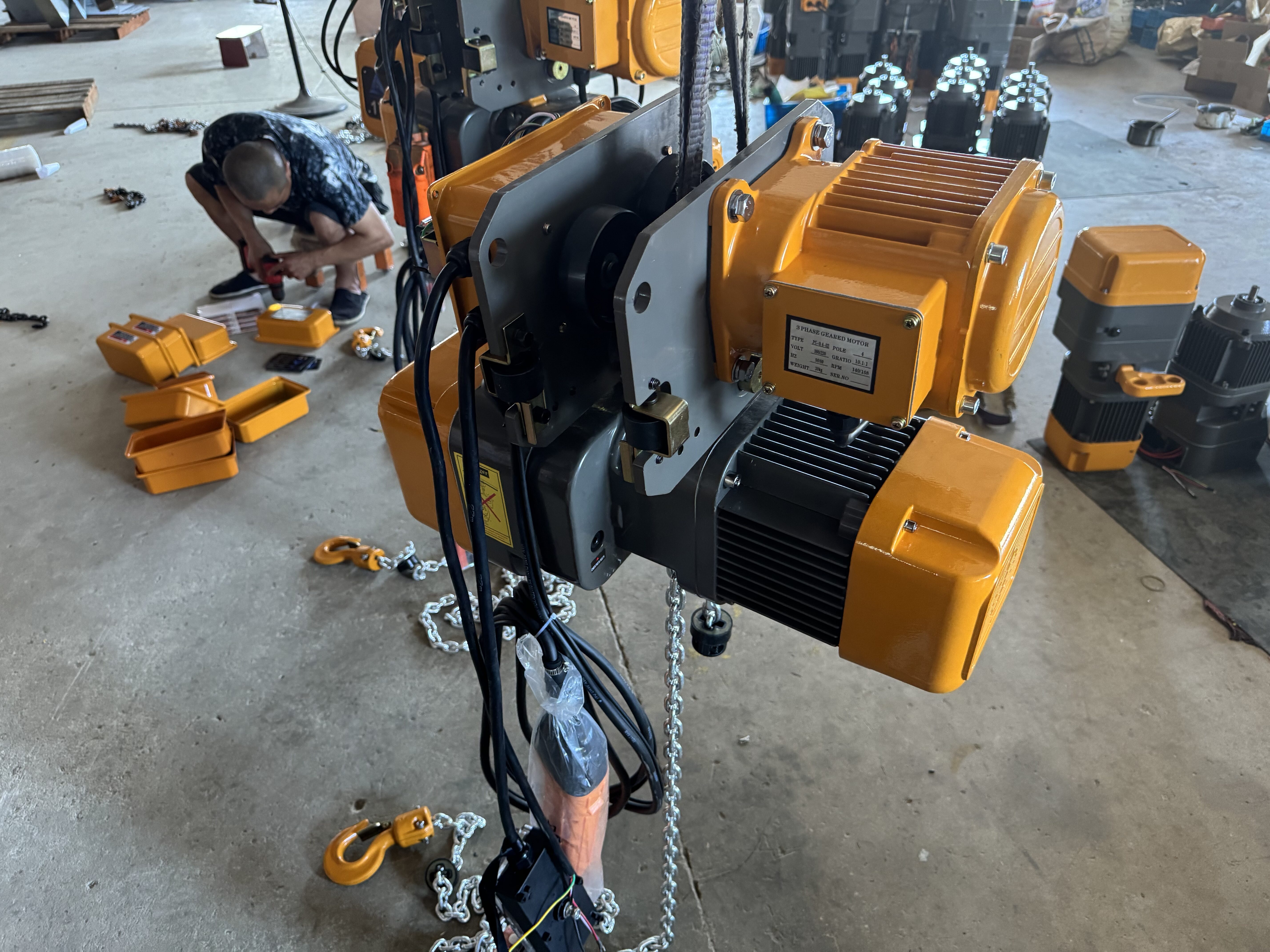

HOIST TYPE: TROLLEY TYPE/FIXED TYPE
CLASSIFICATION/DUTY: Up to M7
WORKING TEMP.: -20℃~+40℃

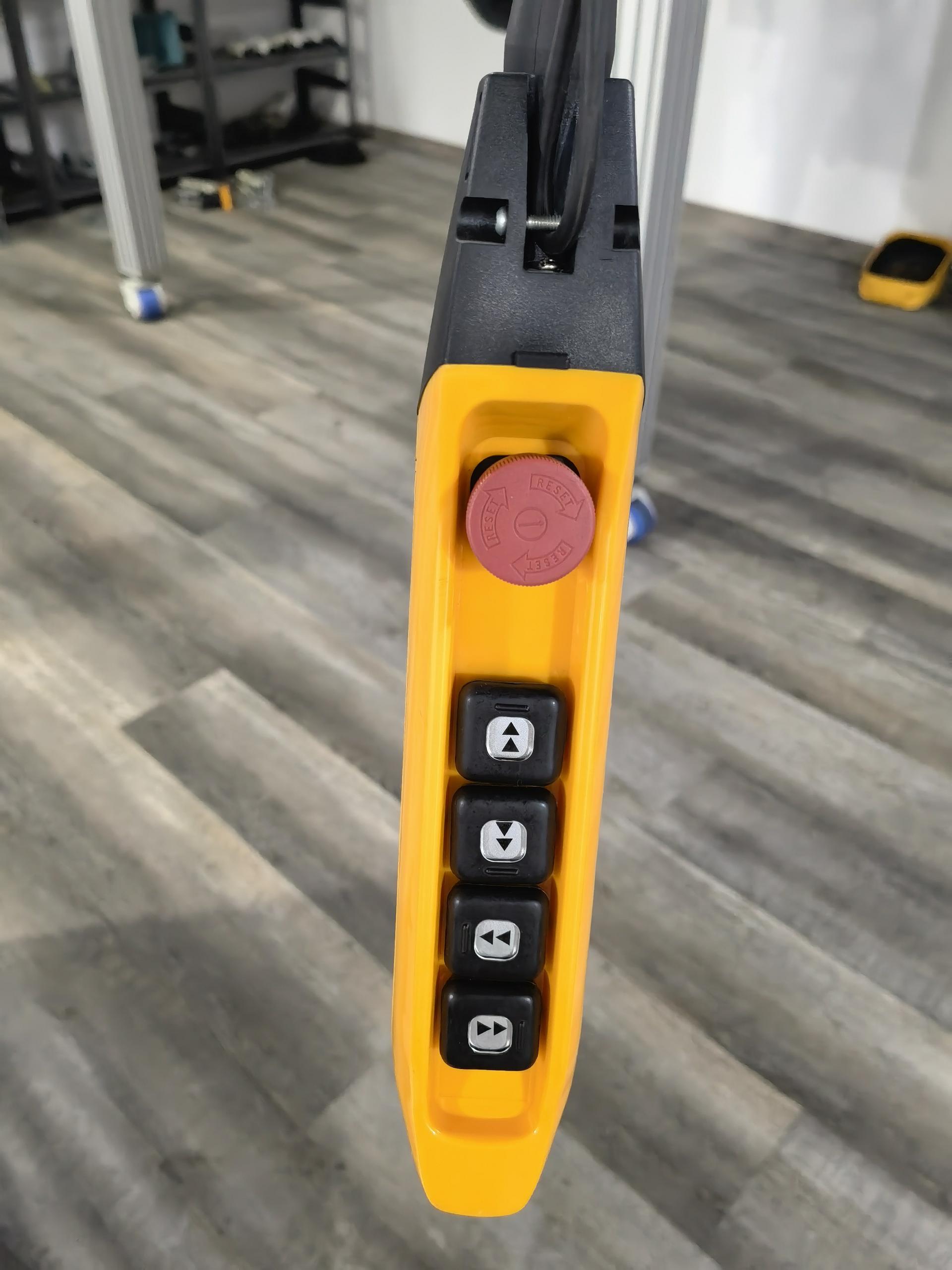

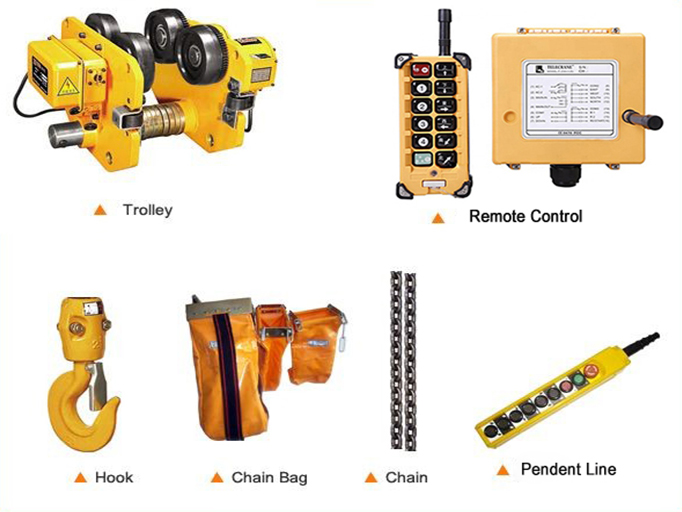

CONTROL TYPE: PENDANT CONTROL & REMOTE CONTROL
APPLICATION
Electric Chain Hoist are usually used in industry, construction, logistics, entertainment and performance, and can be used for lifting, hanging and transporting heavy loads.
DESCRIPTION
Electric Chain Hoist usually have a unique and optimal structure, and the most suitable lifting height is 3-120 meters. Depending on experienced design experience, Max capacity 100T can be designed &manufactured.
The electric chain hoist can be shorten the distance between the machine body and the beam track, and is suitable for operations in low side buildings, especially for temporary workshops or places where the effective lifting space inside is expanded. The building is the most important part of the machine is the chain and braking system.

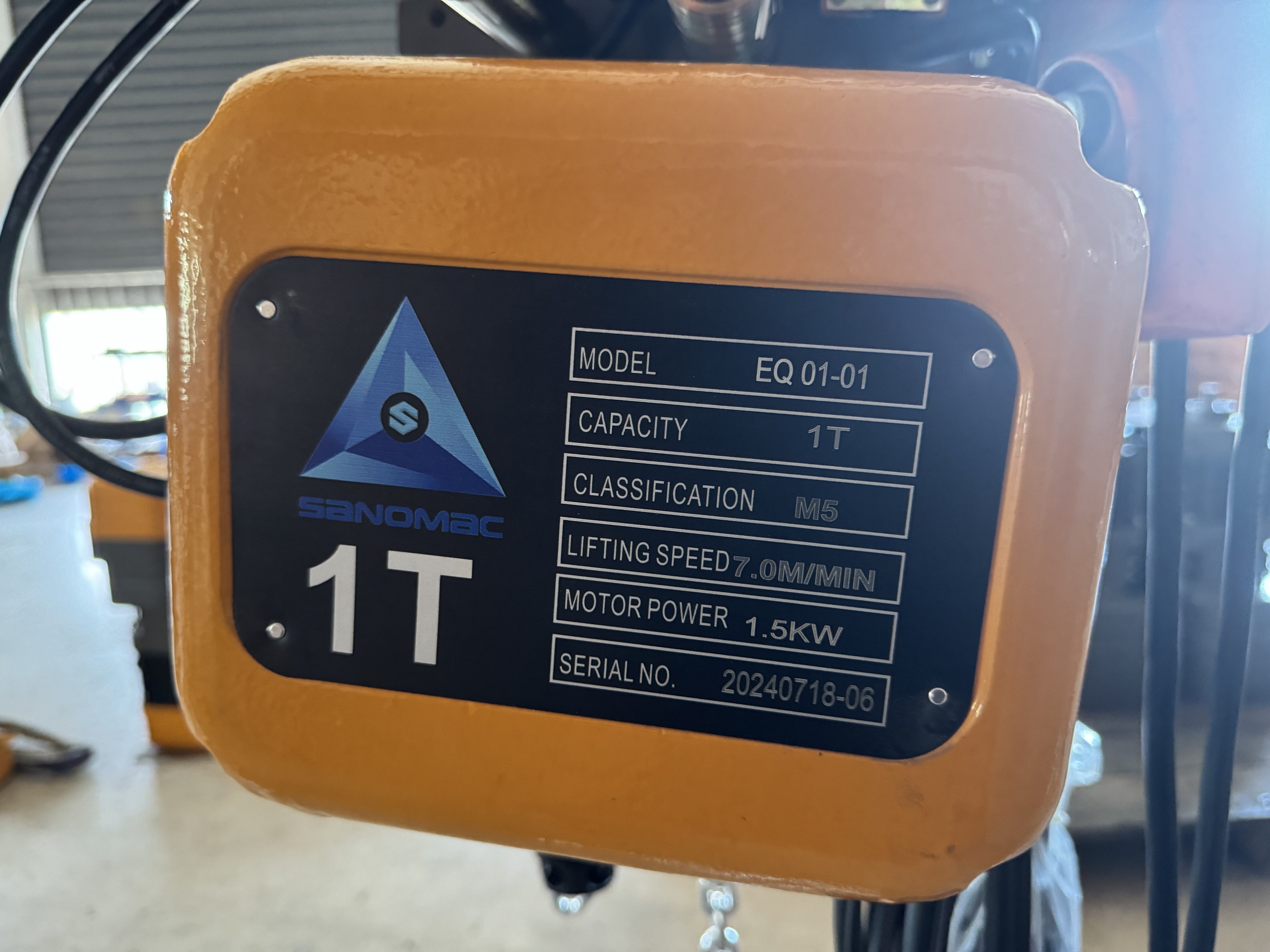

SPECIFICATION
| CAPACITY/T | 0.5 | 1 | 2 | 3 | 5 | ... | |
| CLASSIFICATION | M5 | M5 | M5 | M5 | M5 | ... | |
| LIFTING HEIGHT/M | 3 | 3 | 3 | 3 | 3 | ... | |
| LIFTING SPEED M/MIN | 7 | 7 | 7 | 7 | 3.5 | ... | |
| LIFTING
MOTOR |
POWER/KW | 0.75 | 1.5 | 3 | 3.6 | 3.6 | ... |
| ROTATION SPEED(r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | ... | |
| PHASE | 3 | 3 | 3 | 3 | 3 | 3 | |
| VOLTAGE(V) | 220-660 | 220-460 | 220-460 | 220-460 | 220-460 | 220-460 | |
| FREQUENCY(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| CROSS TRAVELING MOTOR | POWER/KW | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | ... |
|
ELECTRIC TROLLEY TYPE |
ROTATION SPEED(r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | ... |
| TRAVELING SPEED(m/min) | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | |
| PHASE | 3 | 3 | 3 | 3 | 3 | 3 | |
| VOLTAGE(v) | 220-460 | 220-460 | 220-460 | 220-460 | 220-460 | 220-460 | |
| FREQUENCY(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| CHAIN FALLS | 1 | 1 | 1 | 1 | 2 | ... | |
| DEAD WEIGHT | 46 | 58 | 110 | 118 | 135 | ... | |

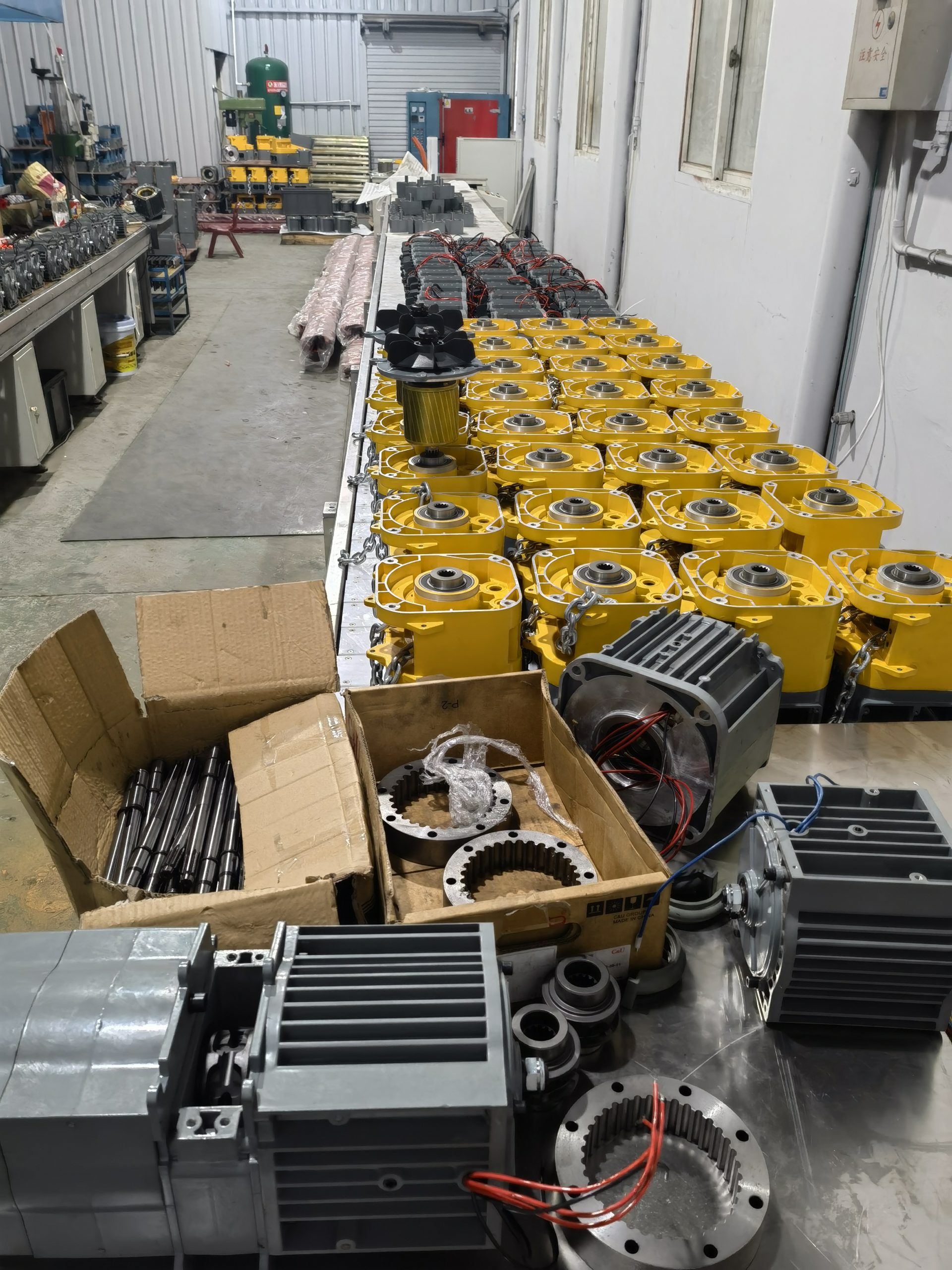

FEATURES
SHELL:
Electric Chain Hoist shell is made of cast aluminum by mode, with light in weight but hard fresture, suitable for use in harsh working environments with high heat dissipation and a fully sealed design.
Rigid body outer shel able to adapt to the serious use environment and use condition.
Simple structure of one time modeled body, few parts.
Dust proof anti splash type body (Protection grade lP55)
LIMIT SWITCH:
Form double safety mechanism with friction clutch. Cut off return circuit when over roll rising and over roll descending.
Because it is safety mechanism under serious situation, so don’ t use it under normal situation.

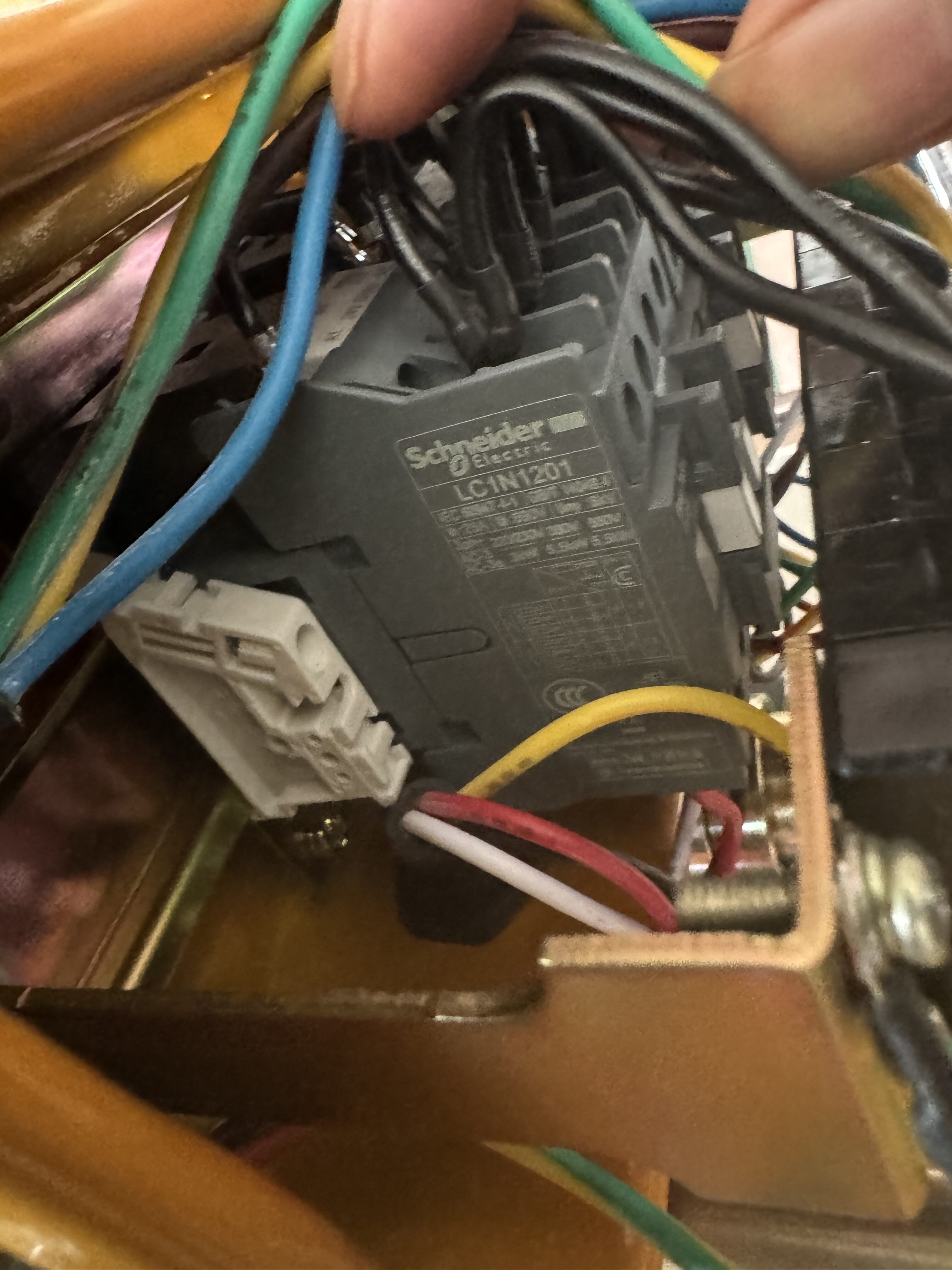

CONTROL VOLTAGE
The control voltage is customized by clients, which can do 24V, 36V or 48V. In addition, the hoist have the lack phase protection and emergency stop.
MAGNETIC BRAKE
Safety and reliable brake device Pound electromagnetic motor braker, scientific structure, few parts, super low failure ratio, strong braking force guarantee the braking requirements when use.

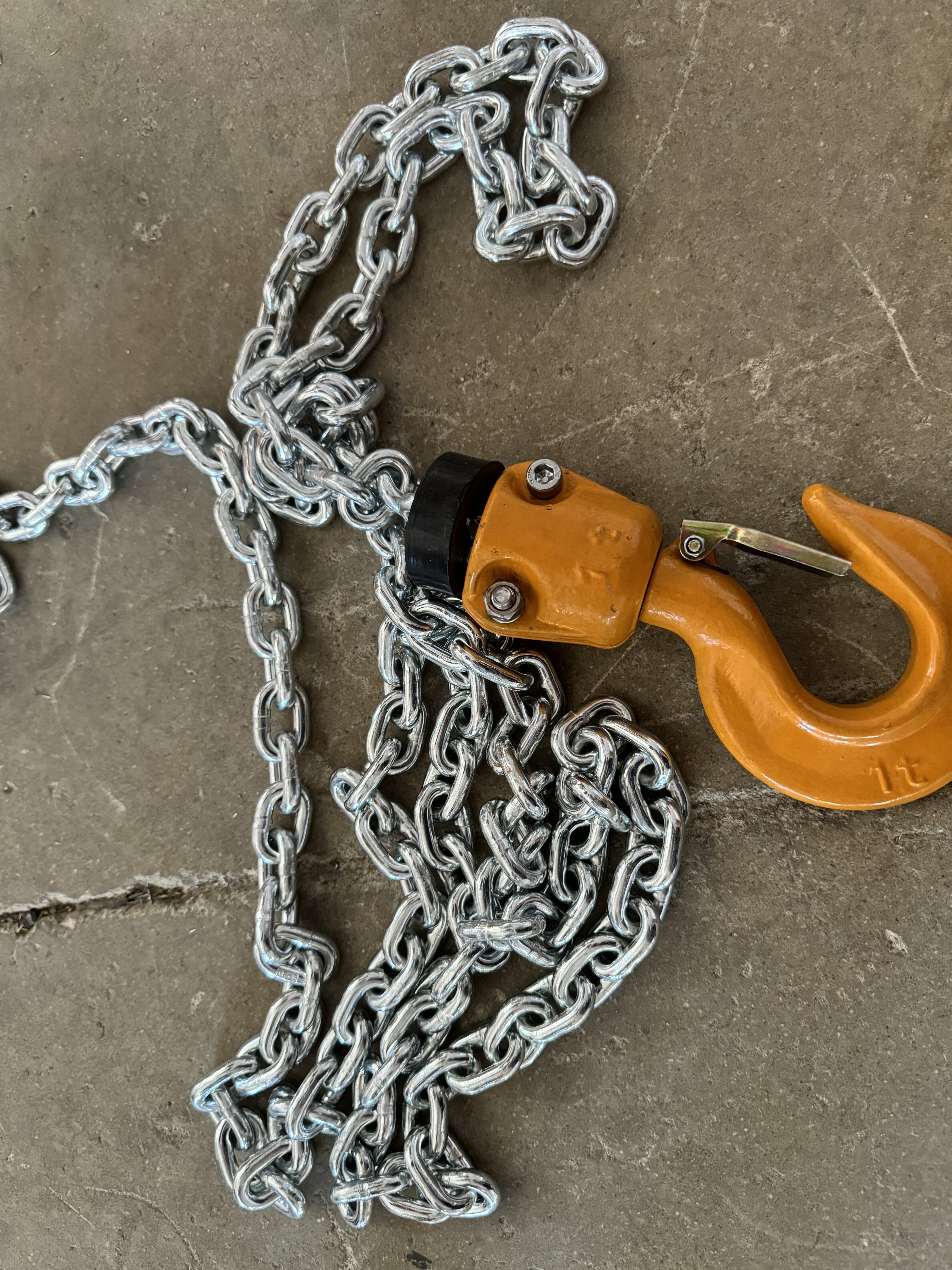

HOOK:
After hot forging, it is light and excellent, not easy to break, it can be rotated 360 degrees when hanging, with safety tongue to ensure safe operation
CHAIN:
The chain should be imported FEC G80 super heat-treated aluminum alloy chain.
ADVANTAGES
Sinomac Industrial Electric Chain Hoist has the following advantages,
- Designed Capacity is Up to 100T.
- Classification/Duty is Up to M7.
- Adopted Self with Friction Clutch and Up/Down Limit Switch
- The Chain adopted G80 and G100.
- The hook is hot forged with perfect strength and is not easy to break.
- Protection Class is Up to IP65.
- Adopted the One Time Cast Aluminum Shell.
- 3PH or Single Phase Electric Chain Hoist: Voltage from 220V -460V, 50/60HZ
- Motor Duty: 60% ED(Single Speed) /40%/20%(Dual Speed).
APPLICATION
- Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
- Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
- It can also be used together with electric hoist double beam, gantry crane and slewing cranes to hoist different items and so on.
