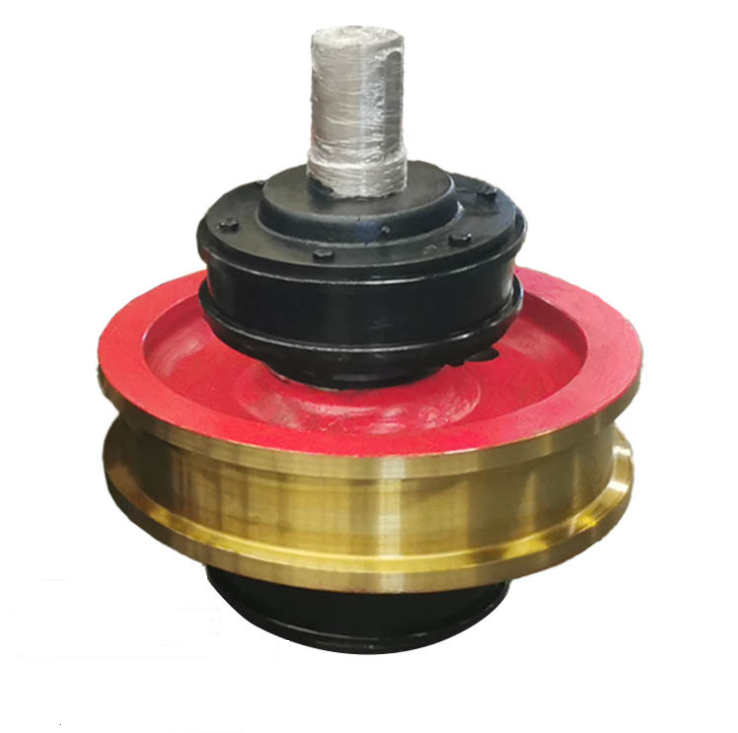

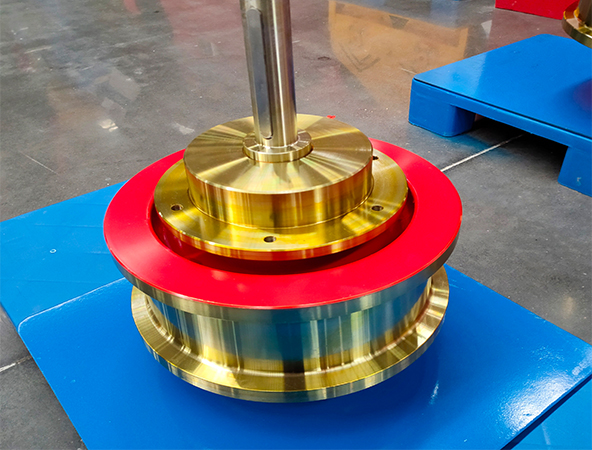

Crane Wheel Block

Crane parts service

Technical Features: Forged by Alloy Steel, Processed by Lathe, Quenched & Tempered, and then Pressed by Mechanical Bearings.

Composition: Wheel, Shaft, Bearings and Bearing Housing, etc.

Wheel Models：Φ100, Φ200, Φ250, Φ300, Φ350, Φ400, Φ500, Φ600, Φ700, Φ800,Φ900, Φ1000 and Φ1200, etc.

Material: DG50SiMn, 42CrMo, 65Mn

Applications:

Mainly used to support the overhead crane, gantry crane and load, and at the same time allow the crane to run reciprocating on the specified track.

Description

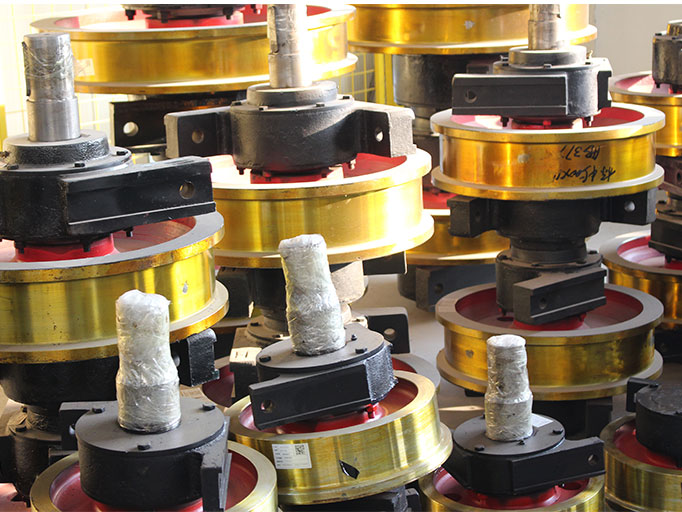

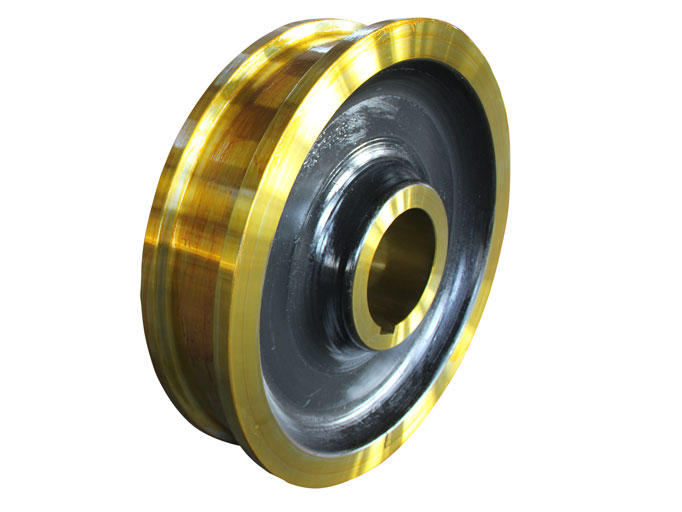

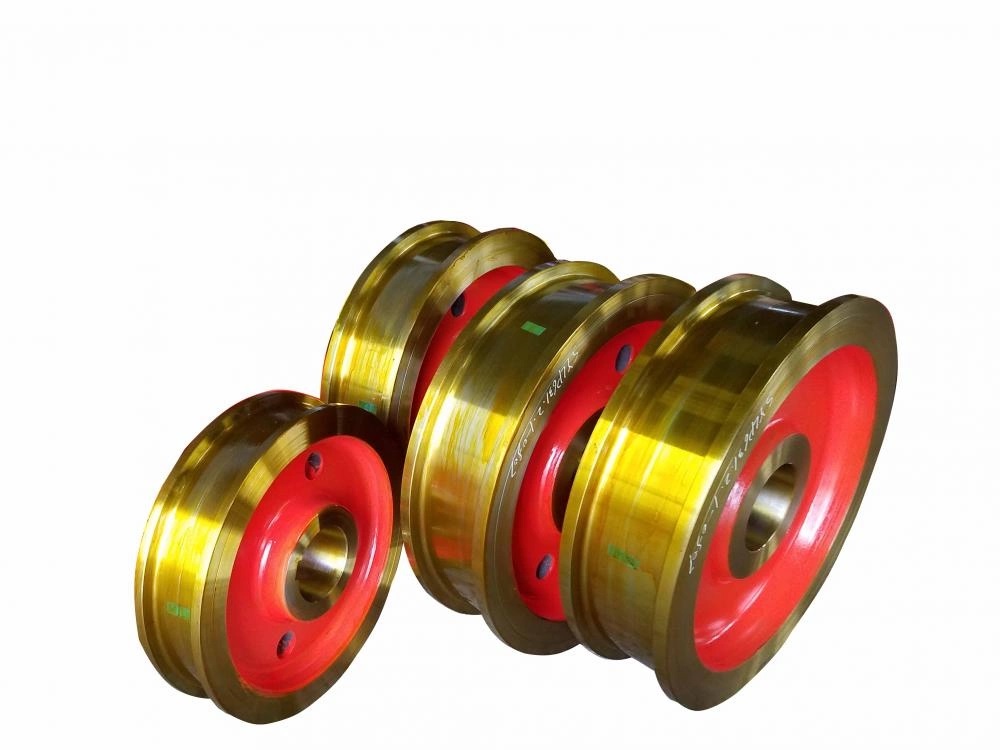

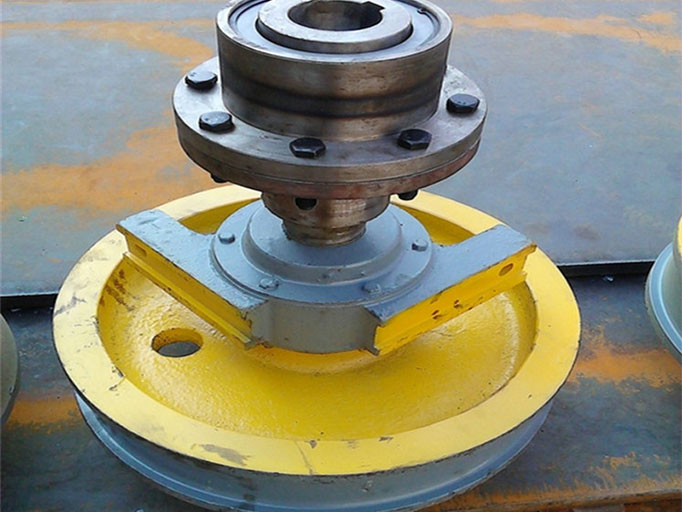

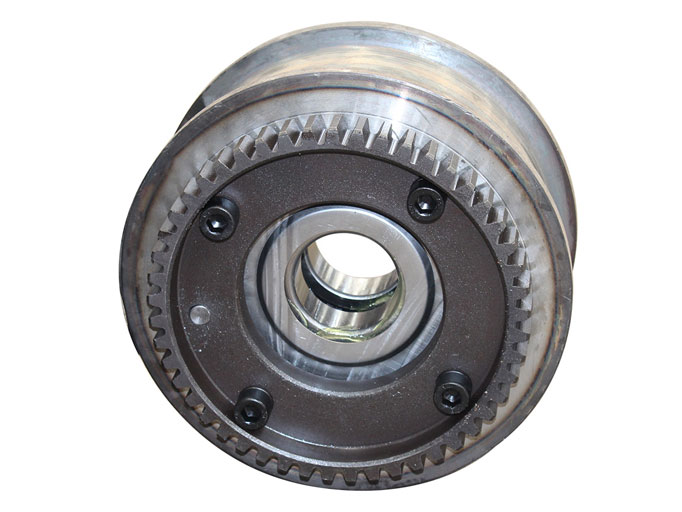

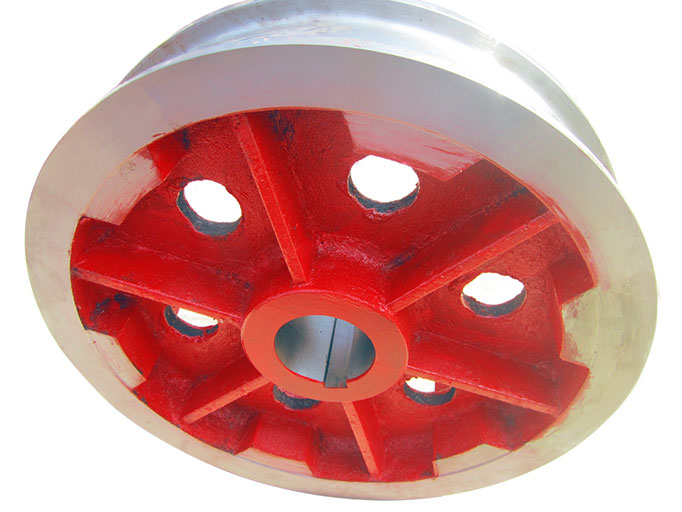

Wheel Block (Crane wheels, DRS wheels, Gear wheels, Transfer Cart Wheel, Sheave wheels and so on) are widely used in the Crane Manufacturer, The port authority, Transportation, Airlines, Railway locomotive, large-scale construction machinery and so on.

Sinomac Industrial produces high-quality wheels that can be customized to meet any specification. Before selecting the wheel design, material, hardness pattern, and heat treating technology, we carefully consider in-service factors to ensure optimal performance. Our extensive machinery and manufacturing experience, combined with our commitment to quality, make Sinomac Industrial the ideal choice for all your wheel requirements.

Sinomac Industrial offers a wide variety of wheel sizes in standard configurations. Additionally, we can produce customized crane wheels in virtually any size, configuration, and surface finish to meet your specific design requirements.

Technical Data

D	D₁	B	B₁
100	130	80~100	95~100
125	140	80~100	95~100
160	190	90~100	95~100
200	230	95~100	95~100
250	280	95~140	95~140
315	350	95~210	95~210
400	440	105 ~210	105 210
500	540	105 210	105 210
630	680	120-210	120-210
710	760	140 210	140~210
800	850	140 210	140 210
900	950	145~220	140~220
1000	1060	145~220	140~220
(1250)	1310	145~220	140~220

Wheel Block are supportted to be customized according to your drawing by Sinomac Industrial, and the materials and hardhess of the wheel can be well matched your requirement.

Material Selection: High-quality steel, such as forged or cast steel, is often used for its durability and ability to withstand wear and tear.

Heat Treatment: Crane wheels undergo heat treatment processes, such as quenching and tempering, to enhance their hardness, strength, and resistance to wear and fatigue.

Surface Hardening: Methods like induction hardening can be used to create a hard, wear-resistant surface layer on the wheel, extending its service life.

Lubrication: Proper lubrication is crucial to reducing friction, wear, and the generation of heat in the wheel and rail interface. Some crane wheels use self-lubricating materials, while others require regular application of lubricant.

When selecting crane wheels, it’s essential to consider factors such as the crane’s capacity, application, and operating environment. The right combination of wheel type, material, and technology will ensure the crane operates efficiently and safely over its service life.

Features

Crane wheel usually are produced from the ZG310-570 cast steel or steel with better quality. The small size overhead crane wheels can be made of forged steel but not below the 45th stainless steel. The bear crane wheels bearing heavy loads are made of alloy steel, such as ZG55CrMn, ZG50MnMo, etc. Alloy material are also used when it is required to reduce the diameter of the overhead crane wheels and eventually to lower the height of the overhead cranes.

Wheel Block is small but important part of overhead crane. The quality of the overhead crane wheels affects the overhead crane quality and operation. The heat treatment to the crane wheels can directly the quality of overhead cranes wheel.

Wheel Block are available in a wide range of standard sizes. In addition, crane wheels to meet your special design requirements can be produced in virtually any size, configuration and surface finish condition.

Products Export

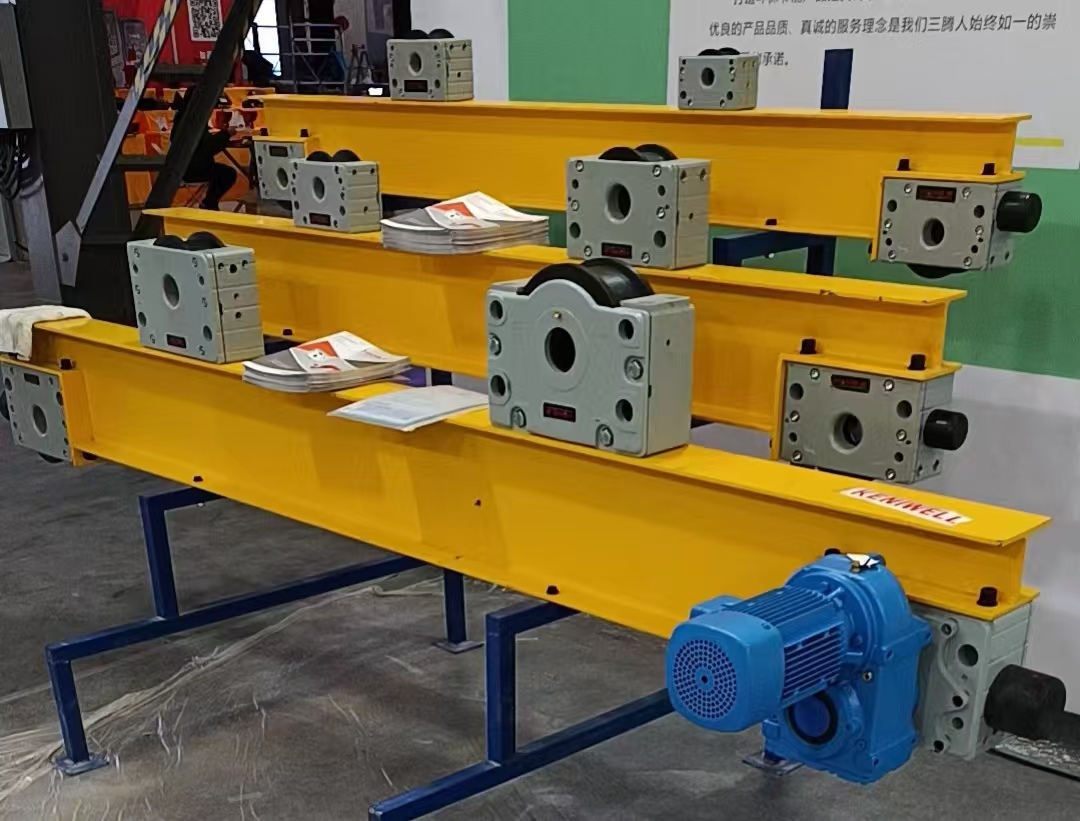

Wheel block are designed and manufactured as modular solutions for a wide variety of applications. Wheel range systems are used in countless mobile devices and systems – as single components or as complete travel unit, which has demonstrated their high reliability and long service life in operation, with only a minimum maintenance requirement. Simple installation and alignment, favorable dimensions and a wide variety of versatile connection options make our wheel systems particularly cost-effective.
