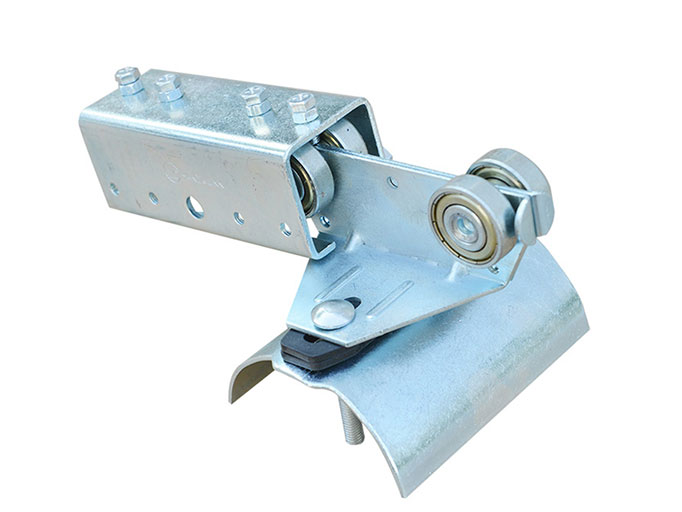

C Track Cable Trolley
Low environmental requirement;
Operation smoothly;
Low failure rate;
Both flat cable and round cable applicable;
The buffer device and cable protection device are installed.
Applications:
general bridge crane, gantry crane, electric hoist trolley, warehouse, shipyard, wharf and other lifting equipment of mobile power supply.
Description
C Track cable trolley is an ideal logistics power supply system, suitable for indoor and outdoor, dusty and large temperature difference. At present, cable trolley is widely used in all kinds of general bridge crane, gantry crane, electric hoist trolley, warehouse, shipyard, wharf and other lifting equipment of mobile power supply.
Product Details
Parameter Table
| Wheels: | Ball Bearing, hardened and galvanized |
| Material: | Carrier Body: Galvanized Steel/304 Stailess Steel |
| Support Saddle: Galvanized steel or ABS | |
| Clamp: Neoprene | |
| Dowel：Seamless brass tube or galvanized steel | |
| Other Hardware：Galvanized steel/304 Stainless Steel | |
| Travelling Speed: | ＜120m/min |
| Working Temperature: | -40℃~125℃ |
| Cable Load: | ＜120kg |
| Cable Loop Depth: | ≥0.3m (when travelling speed is no more than 35m/min) |
| ≤0.8m (when travelling speed is between 35-50m/min) | |
| ≥0.8m (when travelling speed is between 50-80m/min) |
Features
- Low environmental requirement;
- Operation smoothly;
- Low failure rate;
- Both flat cable and round cable applicable;
- The buffer device and cable protection device are installed.
- Manufactured with CNC production line,high precision
- double 90 degrees channels, to ensure the accuracy of the chute 0.5%
- Smooth and even joints, no need for secondary grinding, which is time-
saving and labor-saving - Easy to install, no need to adjust the camber
- Long service life
