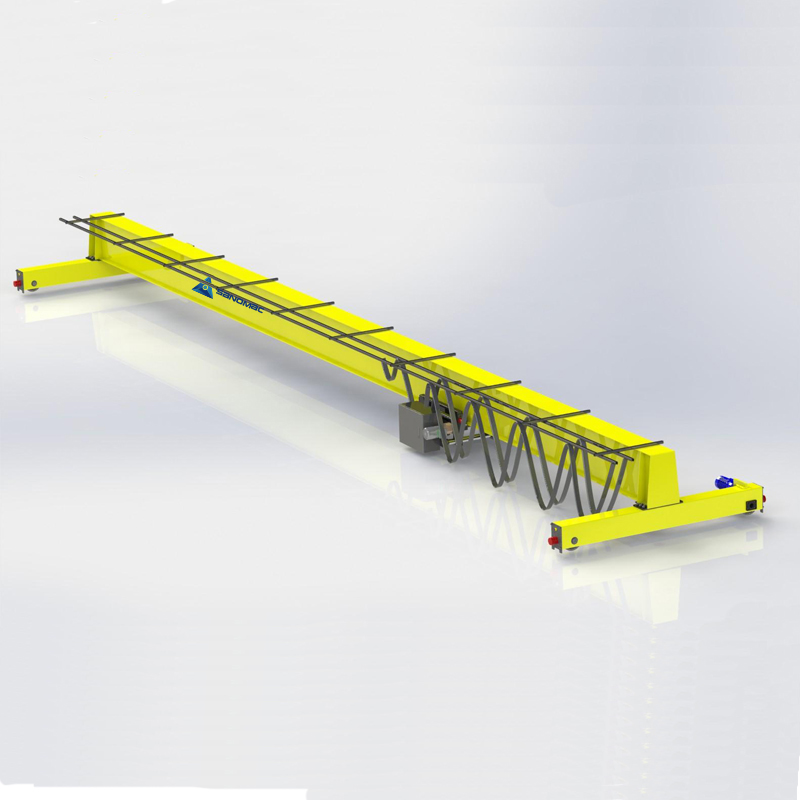

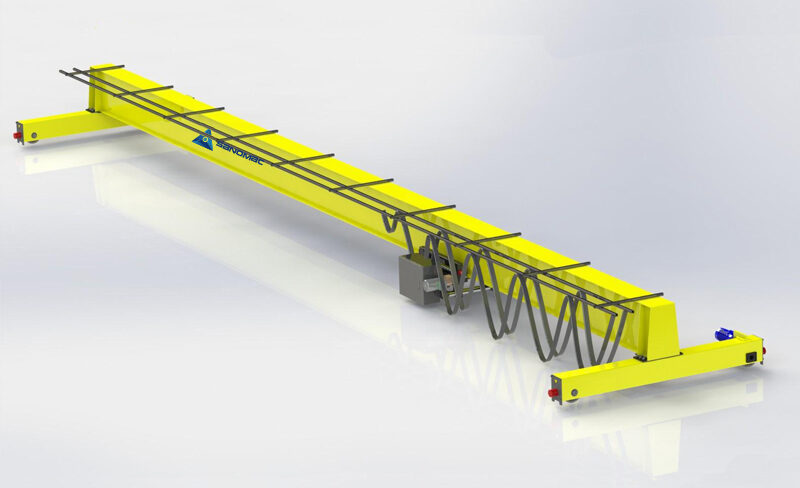

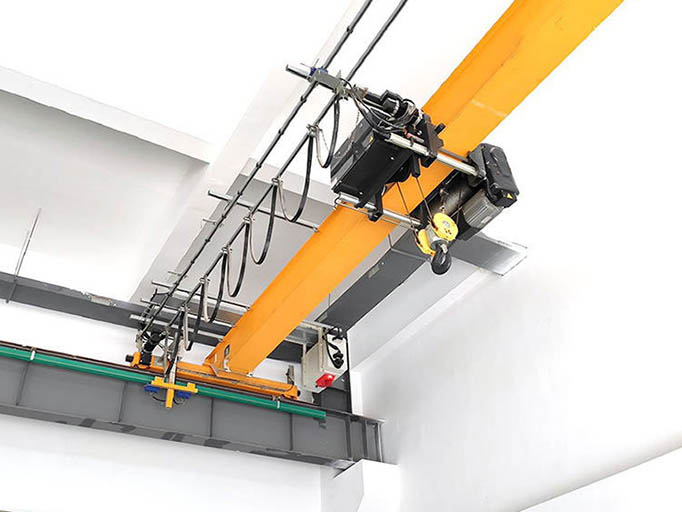

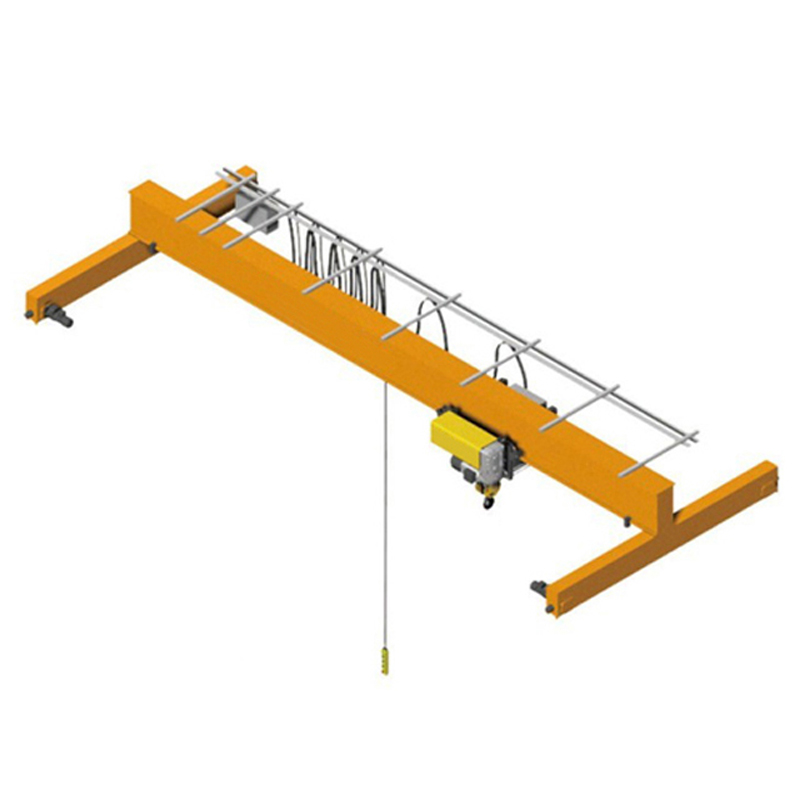

SINGLE GIRDER DIN OVERHEAD CRANE
CAPACITY: 1~32 T
SPAN: ≤50M
LIFTING HEIGHT: CUSTOMIZABLE
CLASSIFICATION/DUTY: UP TO A7/FEM 4M
CONTROL TYPE: REMOTE/PENDNT/CABIN
DESIGN STANDARD: FEM/DIN/ISO
SERVICE TEMP.: -40~+60℃
APPLICATIONS:
WAREHOUSE, MACHING WORKSHOP, CONSURCTION INDUSTRY, CEMENT INDUSTRY, AUTOMOTIVE INDUSTRY, PAPER INDUSTRY, FOOD INDUSTRY, ETC.
DESCRIPTION
Sinomac Industrial single girder DIN overhead crane is also called european type EOT crane which is suitable the light duty working condition warehouse, workshop and so on.
The DIN overhead crane has advantages as: strong rigidity, light dead weight, outstanding structure design, etc. The overhead crane could save your factory space and investment effectively. Technology of overhead crane is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and ISO (International)
To make sure crane working stability, the overhead crane updated fuctions as follows,
- Hoist update into planetary gearbox from traditional 3-in-1 gearbox.
- All the movement speed control update into inverter control from traditional dual speed motor control.
- Anty Sway Function & Al Function(Internet of Things) (Optional)
- Classification/Duty up to FEM 4M/A7
In order to meet clients needs, the DIN overhead crane can be special design, such as, one girder installed ≥ 1 units electric hoist, and can be achieved tandem operation, as clients technical requirement. In addition, the crane can add the anti sway system, AI function to achieve the semi automatic operation.
The DIN Overhead crane is much suitable for light industrial applications. such as the installation and maintenance of equipment in power stations or other workplaces, or workshops and warehouses where work is not frequent.
Experienced crane engineers who worked with world famous brand to help you design the best possible overhead crane system for your facility, and also provide a full range of spare parts and technical support services to ensure the DIN overhead crane working high effieiency and stability.

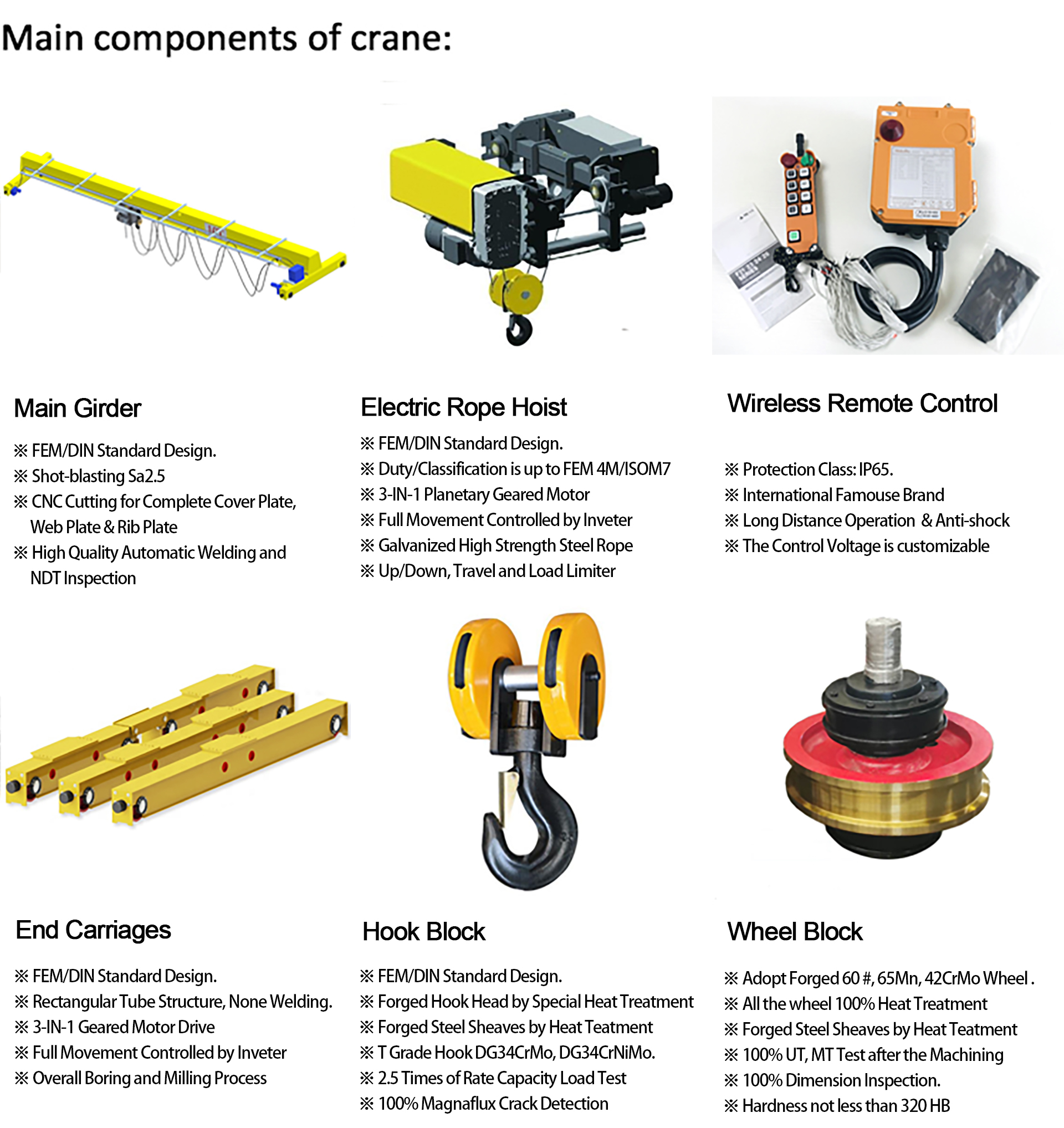

SPECIFICATIONS
MAIN GIRDER/BEAM
✌FEM/DIN Standard Design.
✌Raw Material from Famous Steel Mills.
✌CNC Cutting for Complete Cover Plate, Web Plate & Rib Plate, High Deflection Accuracy.
✌High Quality Automatic Welding and NDT Inspection.
✌Shot-blasting Sa2.5 to make sure the paint adhesion.
✌The Main Girder with High Temperature Resistance can be working under the temperature up to 60℃
✌Larger Span Main Girder (Over 12M) can be designed into high strength bolts connection with positioning hole, which can lower the shipment cost and easy to assemble the main girder.
✌The deflection of beam can be designed into 1/1200 of span for high precision lifeting request workshop.
✌Thickness of Paint ≥ 120 μm.
ELECTRIC HOIST
✌FEM/DIN Standard Design.
✌Adopted 3-IN-1 Planetary Geared Motor, Lowest Noises, Free Maintenance, Free Lubricant Oil Fill, Lower Headroom.
✌Full Inverter (VFD) Drive. Inverter adopted Toshiba-Schneider Inverter Company
✌Galvanized Steel Rope adopted the crane industrial famous brand. High Strength 2160N/m2 with long Service Life and 1.8 times safety factor.
✌The Hook Block adopted the forged hook, Material of hook: 35CrMo.
✌The Brake Type- Electromagnetic inserted into the motor which have the automatic brake, if the power is fault.
✌Hoist has the up/down limiter, cross travel limiter and overload limiter to make sure the safety.
✌The Duty/Classification is up to FEM 4M/ISOM7.
END CARRIAGES/BEAMS
✌FEM/DIN Standard Design
✌Rectangular Tube Structure, None Welding.
✌Overall process is completed by boring and milling CNC lathe, which has high precision and uniform force advantages.
✌Wheel is made of forged 42CrMo alloy steel, which is overall quenching and tempering treatment with wear resistance and high hardness advantages.
✌Wheel bearings adopt self-aligning tapered roller bearings, which can automatically adjust the level of the crane.
✌The drive adopts a 3-IN-1 GEARED MOTOR, which is completely sealed compact gearbox with free of maintenance for life. the geared motor and the end carriages are assembled with a torque arm, which has the advantages of high transmission efficiency and low noise.
✌The motor reducer adopts a squirrel-cage variable frequency motor, with protection grade IP54, F class insulation, stepless speed regulation, hard tooth surface, quiet design, good sealing, and stable operation.
ELECTRIC CONTROL SYSTEM
✌The electric cabin protection class can be up to IP67.
✌All the Main Electric Component is adopted Schneider/ABB or equivalent.
✌All wires have color, number, or wire size marks, which can be easy identified.
✌All the movement is controlled by Inverter (VFD), the Inverter is adopted the TOSHIBA-SCHNEIDER Brand or your specified brand.
✌Cross Travel is adopted festoon type power system with galvanized sliding rail and cable trolley.
✌All the same bay cranes will be equipped the infrared anti-collision limit switch.
✌Equipped sound and light alarm system, Emergency stop, lower voltage protection, phases failure protection, Phase lose protection, voltage fluctuation Protection system and current overload protection.
STANDARD TECHNICAL SPECFICATION
FEATURES
- Low Headroom
- FEM/DIN Design Standard
- Single Welding Box Girder/Beam.
- Full Inverter Speed Control
- 3-IN-1 Gearbox With Frequency Motor
- IP55 Protection, F/H Insulation
- Heavy Duty Motor, 60%ED rating
- Overload Cell with Display
- Up/Down Limit Switch
- Electromagnetic Brake System
- DIN 34CrMo4 Hook, Class T
ADVANTAGES
1. Light Dead Weight
Design software developed by the company combine with three-dimensional modering and finite-element analysis, apply the reasonable structure to lifting mechanism, steel construction and accessories, together with wide use of high-strength material, it increases load capacity, decreases self-weight and has lower weight and wheel pressure than that of traditional crane.
2. Small Hook Approchal
Limit distance from hook to boat sides is short but has large working arrange. with lower height above the rail, it makes full use of space of factory building,
3. Low Cost of Running & Maintainance
As with low wheel pressure and small dimension, it reduces investment of previous construction including factory building, and also reduces illumination and heating expense. The reilable performance and durability also minimizes the additional charges for the use of product at the later stage. Selected components with high quality and preformance lower the maintenance and repair. The total power consumption is reduced, which achieves cost savings.
4. High Performance
Use variable-frequency technology, run with heavy load at low and light load at high speed. The adjustable speed ranges in 1:10, which ensures eot crane/DIN overhead crane run steadily and reduces impact on factory building. Combination of swing-proof technology achieves a high accuracy position of lifting items.
CUSTOMIZABLE
Please share following specificatons, so that you can get the best price from us.
1.Capacity?
2.Single Girder or Double Girder?
3.Lifting Height?
4.Span(Rail Center to Rail Center)
5.Classification/Duty or Working Condition as follows,
a. Average Lifting Weight?
b. Lifting Times/Hour?
6.Power Supply: 3PH220V/380V/415V/440V/460V OR?
7.Travel Distance? Whether the Long Travel Power System-Conductor Rail and Crane Traveling Rail are required?
8.Service Area(Hazardous Area, Temperature)?
9. Please share Workshop Drawing, if it’s Possible?
10. Your Other Special technical specifications request?

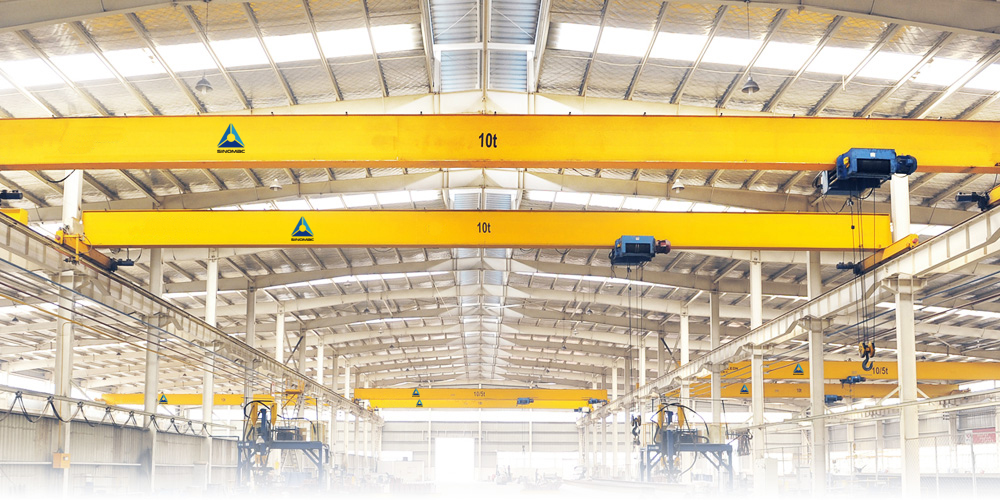

APPLICATIONS
All Workshop that have supporting structures for crane runways and when full coverage of the working space is needed. Applicable Industries are: petrochemical, oil and gas, automotive, electric power, nuclear power/energy, metallurgy, machinery manufacturing, paper manufacturing, Shipyard, marine engineering, waste treatment, mining and other general industries.
